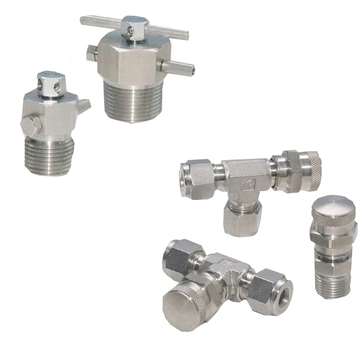

SPUV Purge Valves
Price range: $19.15 through $72.24
Description
Compact for convenient installation. Vent hole bleeds excess liquid or gas from system lines. Cap is crimped to valve body to prevent accidental disassembly. Variety of end connections; Superlok® tube fittings, NPT and ISO threads.
| Inch/Metric | Inch |
|---|---|
| Pressure Rating 316 Stainless Steel at -65 (-53 ºC) to 100 (37 ºC) | 275bar |
| Pressure Rating at 100ºF (38ºC ) | 27bar, 4000psig |
| Superlok Part Type | Valve |
| Temperature Rating | -65 to 600ºC, -54 to 315ºF |
| Working Pressure at -65 (-53 ºC) to 100 º F(37 ºC) Temperature | 4000psig |
| Working Pressure at 150 (65 ºC) Temperature | 256bar, 3720psig |
| Working Pressure at 200 (93 ºC) Temperature | 337bar, 3440psig |
| Working Pressure at 300 (148 ºC) Temperature | 213bar, 3105psig |
| Working Pressure at 350 (176 ºC) Temperature | 2975psig |
| Working Pressure at 350(176 ºC) Temperature | 204bar |
| Working Pressure at 400 (204 ºC) Temperature | 196bar, 850psig |
| Working Pressure at 450 (232 ºC) Temperature | 189bar, 2750psig |
| Working Pressure at 500 (260 ºC) Temperature | 182bar, 2650psig |
| Working Pressure at 600 (315 ºC) Temperature | 172bar, 2500psig |
Available Sizes
$19.15
SPUV Purge Valves SPUV-S-6-UT
SPUV 3/8 in. Outside Diameter, 6000 psi Pressure Rating T-Type Inlet Purge Valve
$46.96
$46.96
SPUV Purge Valves SPUV-S-8-UT
SPUV 1/2 in. Outside Diameter, 6000 psi Pressure Rating T-Type Inlet Purge Valve
$72.24
$72.24
