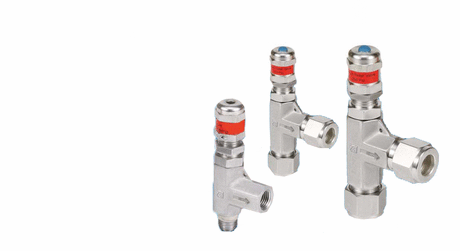

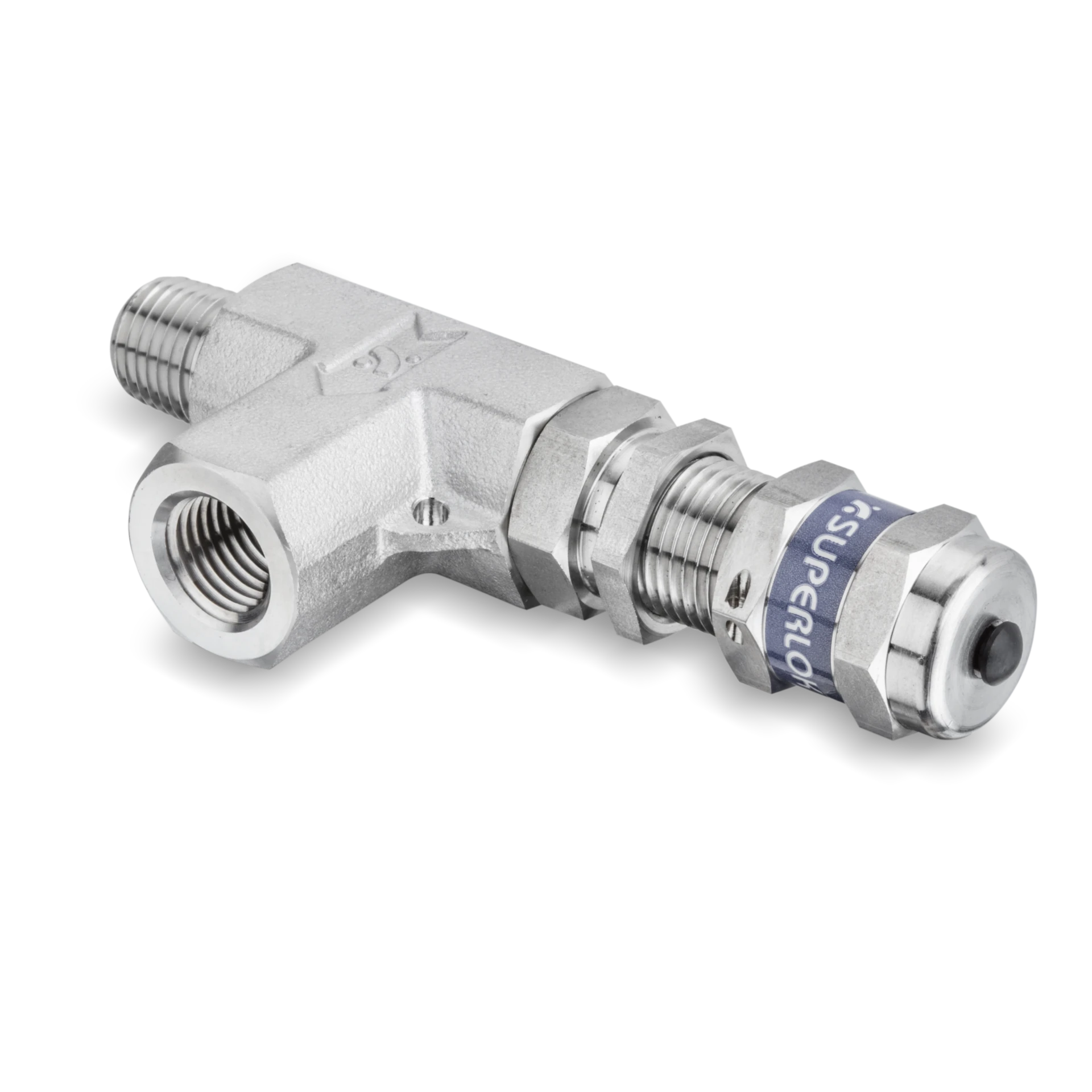

SRVL Low Pressure Relief Valves
Price range: $159.92 through $279.20
See individual part details below
Access our low-pressure relief valves, designed to safeguard systems against pressure spikes in low-pressure applications. These valves deliver leak-free performance and are built for durability in industrial environments. Engineered for reliability, they ensure safety and efficiency in fluid systems. Browse our catalog for dependable solutions.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Description
Compact design Cracking pressure adjustable externally Lock wire feature secures a given pressure setting Each and every valve is tested at the factory
| Cracking Pressure Range | 0.69 to 17.2bar, 10.0 to 250psig |
|---|---|
| Inch/Metric | Inch |
| Operating Pressure [Max] | 20.6bar, 300psig |
| Orifice | 4.8mm |
| Superlok Part Type | High Pressure Relief Valves |
Available Sizes
SRVL Low Pressure Relief Valves SRVL-MF-4N
SRVL 1/4 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, 300 psi Low Pressure Relief Valve
$159.92
$159.92
SRVL Low Pressure Relief Valves SRVL-MF-4N-KZ
SRVL 1/4 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, FFKM (Perfluoroelastomer) O-Ring, 300 psi Low Pressure Relief Valve
$279.20
$279.20
SRVL Low Pressure Relief Valves SRVL-MF-4N-N
SRVL 1/4 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, Buna N O-Ring, 300 psi Low Pressure Relief Valve
$159.92
$159.92
SRVL Low Pressure Relief Valves SRVL-MF-8N
SRVL 1/2 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, 300 psi Low Pressure Relief Valve
$190.18
$190.18
SRVL Low Pressure Relief Valves SRVL-MF-8N-N
SRVL 1/2 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, Buna N O-Ring, 300 psi Low Pressure Relief Valve
$190.18
$190.18
SRVL Low Pressure Relief Valves SRVL-S-4
SRVL 1/4 in. Outside Diameter, Angle Pattern, 300 psi Low Pressure Relief Valve
$168.00
$168.00
SRVL Low Pressure Relief Valves SRVL-S-4-N
SRVL 1/4 in. Outside Diameter, Angle Pattern, Buna N O-Ring, 300 psi Low Pressure Relief Valve
SRVL Low Pressure Relief Valves SRVL-S-6
SRVL 3/8 in. Outside Diameter, Angle Pattern, 300 psi Low Pressure Relief Valve
$189.00
$189.00
SRVL Low Pressure Relief Valves SRVL-S-6-N
SRVL 3/8 in. Outside Diameter, Angle Pattern, Buna N O-Ring, 300 psi Low Pressure Relief Valve
$189.00
$189.00
SRVL Low Pressure Relief Valves SRVL-S-8
SRVL 1/2 in. Outside Diameter, Angle Pattern, 300 psi Low Pressure Relief Valve
$204.96
$204.96
