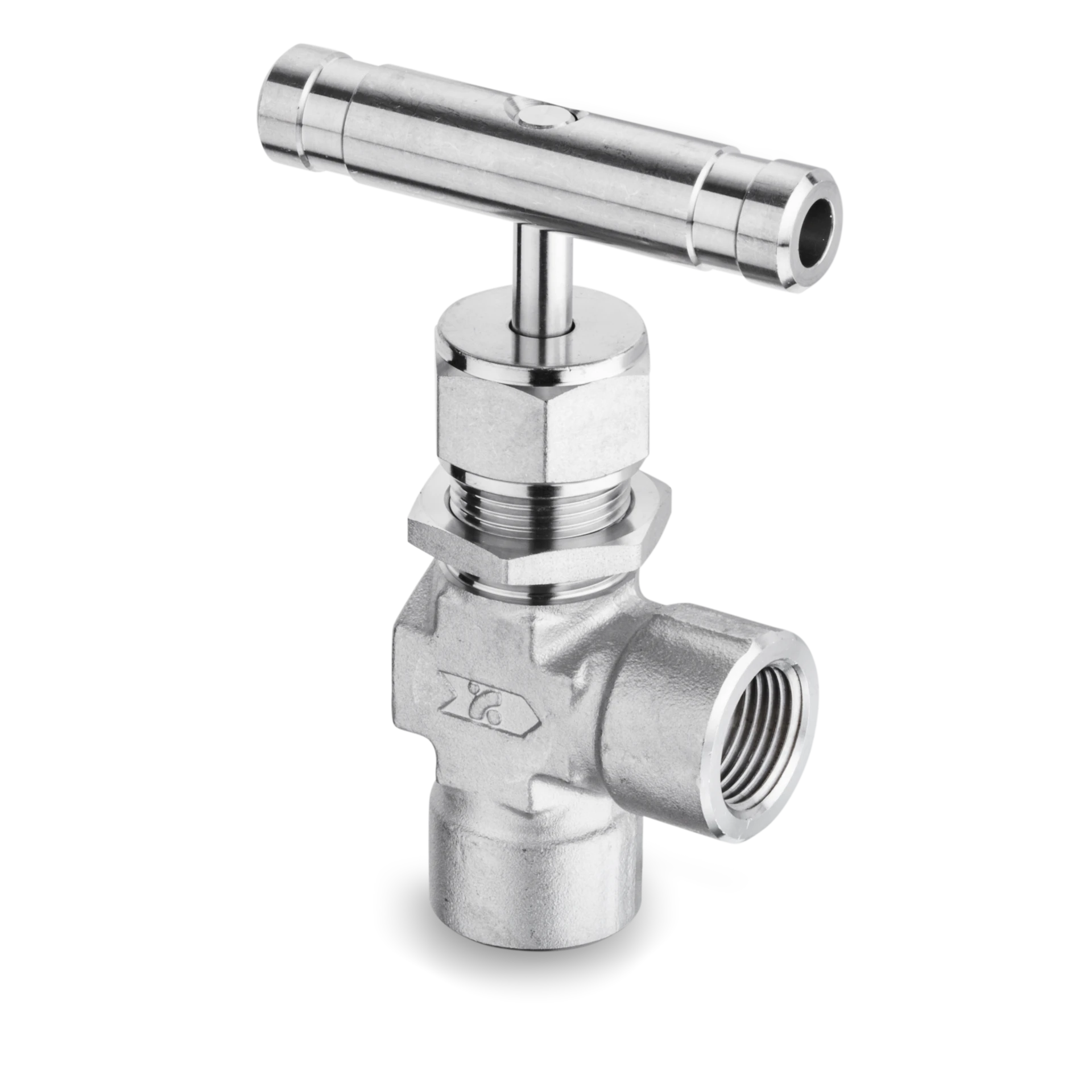

SINV Needle Valves

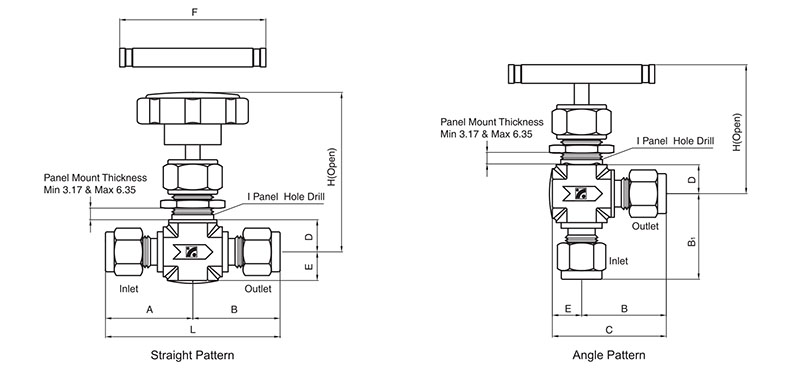

SINV Needle Valves - Image 2

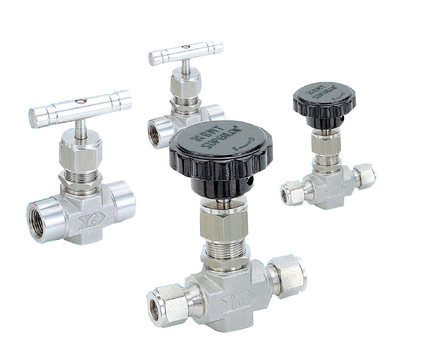

SINV Needle Valves - Image 3

SINV Needle Valves

Price range: $68.88 through $193.20

See individual part details below

Access our integral bonnet needle valves, designed for precise flow regulation in critical fluid systems. These valves provide durable, leak-proof performance and are ideal for high-pressure applications. Engineered for industrial reliability, they deliver accuracy and efficiency in demanding environments. Check out our catalog for reliable solutions.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.

Request Quote (832) 843-7141
Description

Compact design Low operating torques Panel mountable Variety of stem tips Variety of End Connections Straight and Angle flow patterns Each and every valve is tested at the factory

Specifications
Inch/Metric Inch
Pressure Rating at 100 (38 ºC) Temperature 345bar, 5000psig
Superlok Part Type Needle Valve
Temperature Rating with Polyether Ether Ketone (PEEK) Packing 315ºC, 600ºF
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing -54 to 232ºC, -65 to 450ºF
Available Sizes
SINV3-S-6-RS

SINV Needle Valves SINV3-S-6-RS

SINV 3/8 in. Outside Diameter, Regulating Stem, Bar Handle, 5000 psi Pressure Rating Needle Valve
$68.88
$68.88
SINV3-S-6-RS-KH

SINV Needle Valves SINV3-S-6-RS-KH

SINV 3/8 in. Outside Diameter, Regulating Stem, Phenolic Handle, 5000 psi Pressure Rating Needle Valve
$68.88
$68.88
SINV3-S-6-RS-MR

SINV Needle Valves SINV3-S-6-RS-MR

SINV 3/8 in. Outside Diameter, Regulating Stem, National Association of Corrosion Engineers (NACE) Rated, 5000 psi Pressure Rating Needle Valve
$94.08
$94.08
SINV3-S-8-RS

SINV Needle Valves SINV3-S-8-RS

SINV 1/2 in. Outside Diameter, Regulating Stem, Bar Handle, 5000 psi Pressure Rating Needle Valve
$75.60
$75.60
SINV4-F-8N-RS

SINV Needle Valves SINV4-F-8N-RS

SINV 1/2 in. Male National Pipe Taper (MNPT) Thread, Bar Handle, Regulating Stem, 5000 psi Pressure Rating Needle Valve
$144.00
$144.00
SINV4-MF-8N-RS

SINV Needle Valves SINV4-MF-8N-RS

SINV 1/2 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, Regulating Stem, Bar Handle, 5000 psi Pressure Rating Needle Valve
$164.00
$164.00
SINV4-S-8-RS

SINV Needle Valves SINV4-S-8-RS

SINV 1/2 in. Outside Diameter, Regulating Stem, Bar Handle, 5000 psi Pressure Rating Needle Valve
$164.64
$164.64
SINV4-S-8-RS-KH-A-PE

SINV Needle Valves SINV4-S-8-RS-KH-A-PE

SINV 1/2 in. Outside Diameter, Angle Pattern, Peek Seats, Phenolic Handle Needle Valve
SINV4-S-8-RS-KH-PE

SINV Needle Valves SINV4-S-8-RS-KH-PE

SINV 1/2 in. Outside Diameter, Peek Seats, Phenolic Handle, 5000 psi Pressure Rating Needle Valve
$193.20
$193.20
SINV4-S-12-RS

SINV Needle Valves SINV4-S-12-RS

SINV 3/4 in. Outside Diameter, Bar Handle, Regulating Stem, 5000 psi Pressure Rating Needle Valve
$174.72
$174.72
