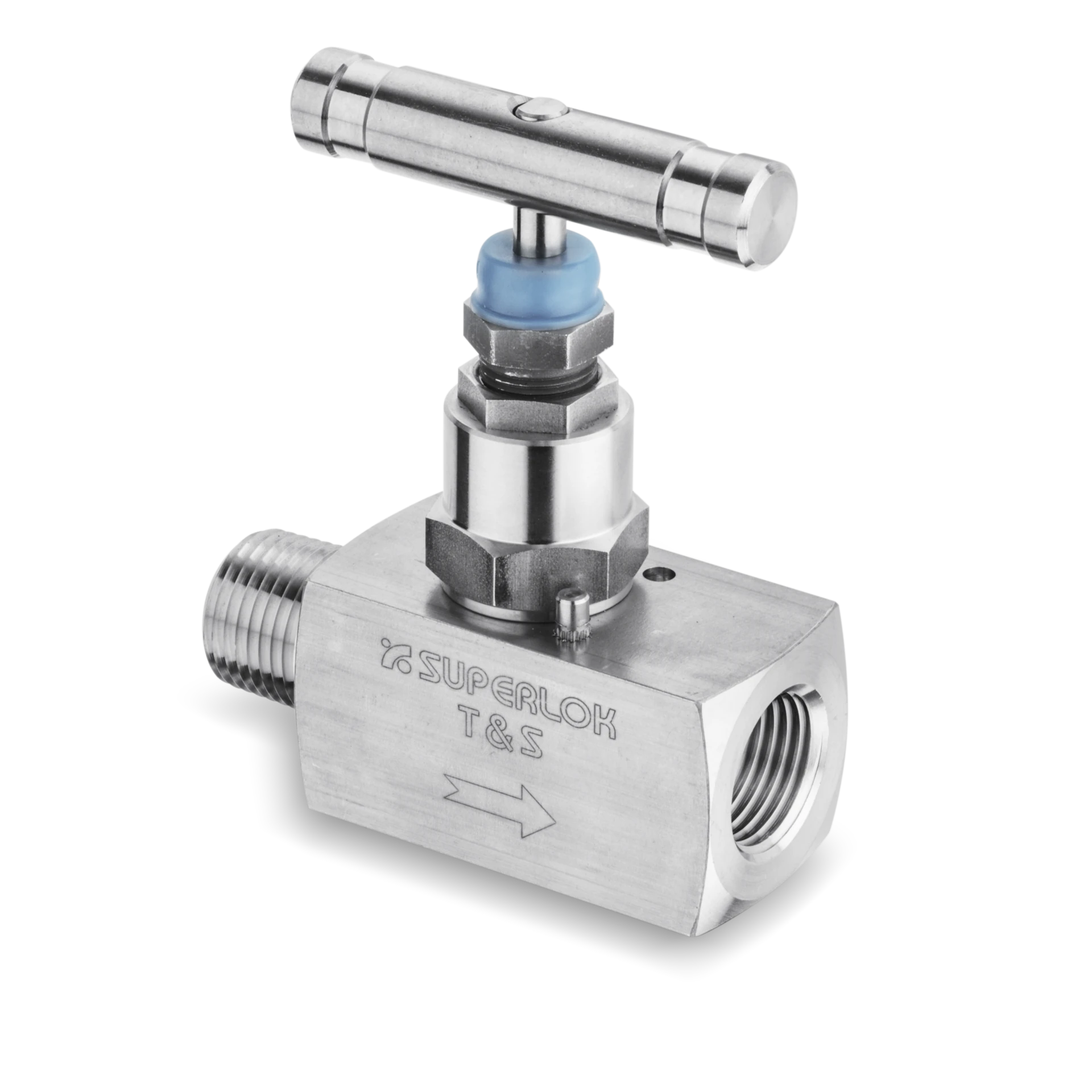

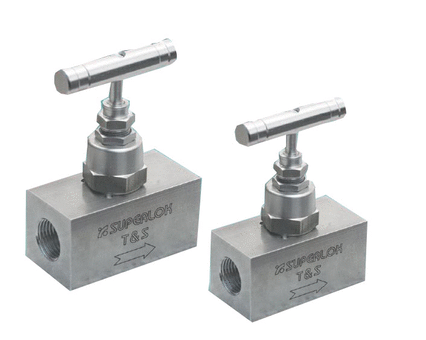

SHBNV High Pressure Bar Stock Needle Valves
Price range: $175.63 through $175.63
See individual part details below
Access our bar stock needle valves, designed for precision and durability in extreme-pressure environments. These valves ensure reliable, leak-proof performance and are engineered for robust operation in industrial systems. Our bar stock needle valves are built from high-strength bar stock materials, they deliver exceptional control and longevity. Explore our catalog for components tailored to your application.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Bar Stock Body Compact design Low operating torques Variety of End Connection Straight and angle flow patterns Each and every valve tested at the factory
| Cv Coefficient | 0.52 |
|---|---|
| End Type 2 | Female National Pipe Thread (FNPT) |
| Inch/Metric | Inch |
| Orifice Diameter | 5mm |
| Pressure Rating at 100 (38 ºC) Temperature | 689bar, 10000psig |
| Superlok Part Type | Needle Valve |
| Temperature Rating with Polytetrafluoroethylene (PTFE) Packing | -54 to 232ºC, 65 to 450ºF |

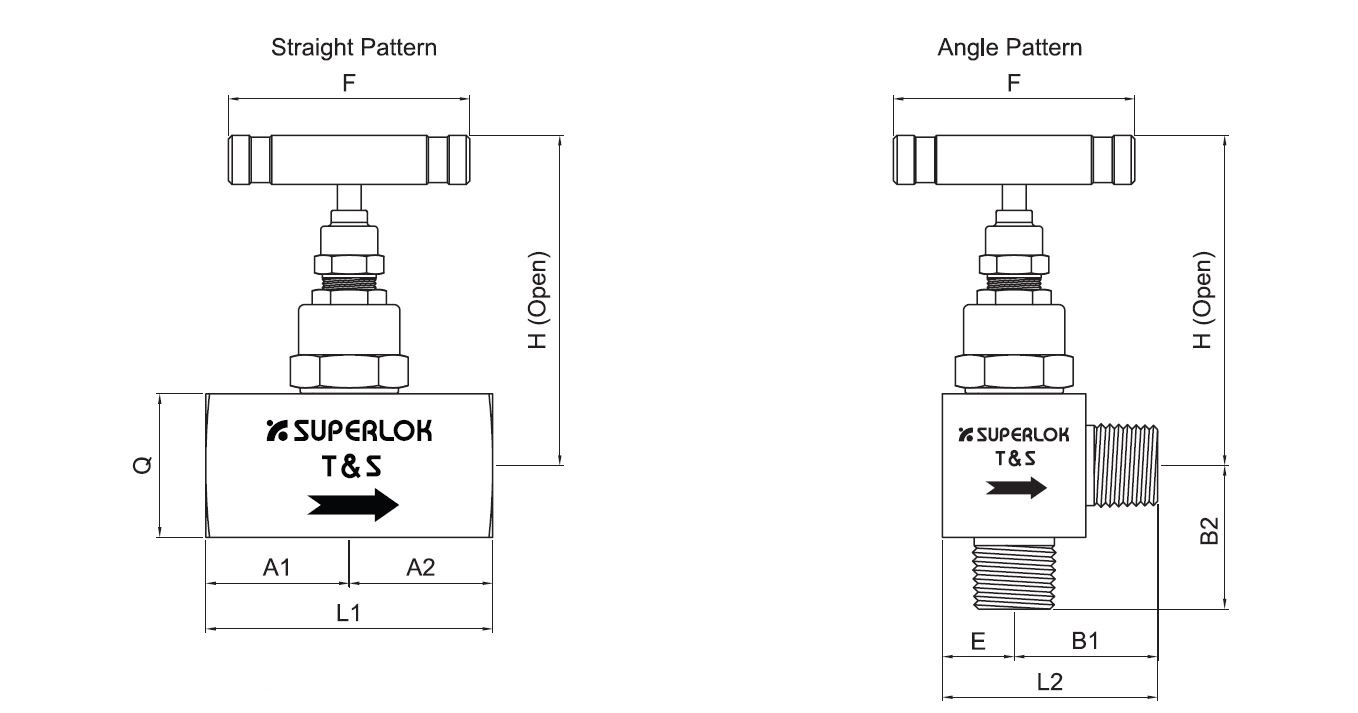

| Dimension A1 | 38.0mm |
|---|---|
| Dimension A2 | 38.0mm |
| Dimension B1 | 38.0mm |
| Dimension B2 | 38.0mm |
| Dimension E | 19.0mm |
| Dimension F | 64.0mm |
| Dimension H | 87.5mm |
| Dimension L2 | 57.0mm |
| Dimension Q | 38.0mm |
SHBNV High Pressure Bar Stock Needle Valves SHBNV-MF-8N
SHBNV High Pressure Bar Stock Needle Valves SHBNV1-F-4N
SHBNV High Pressure Bar Stock Needle Valves SHBNV1-MF-4N
