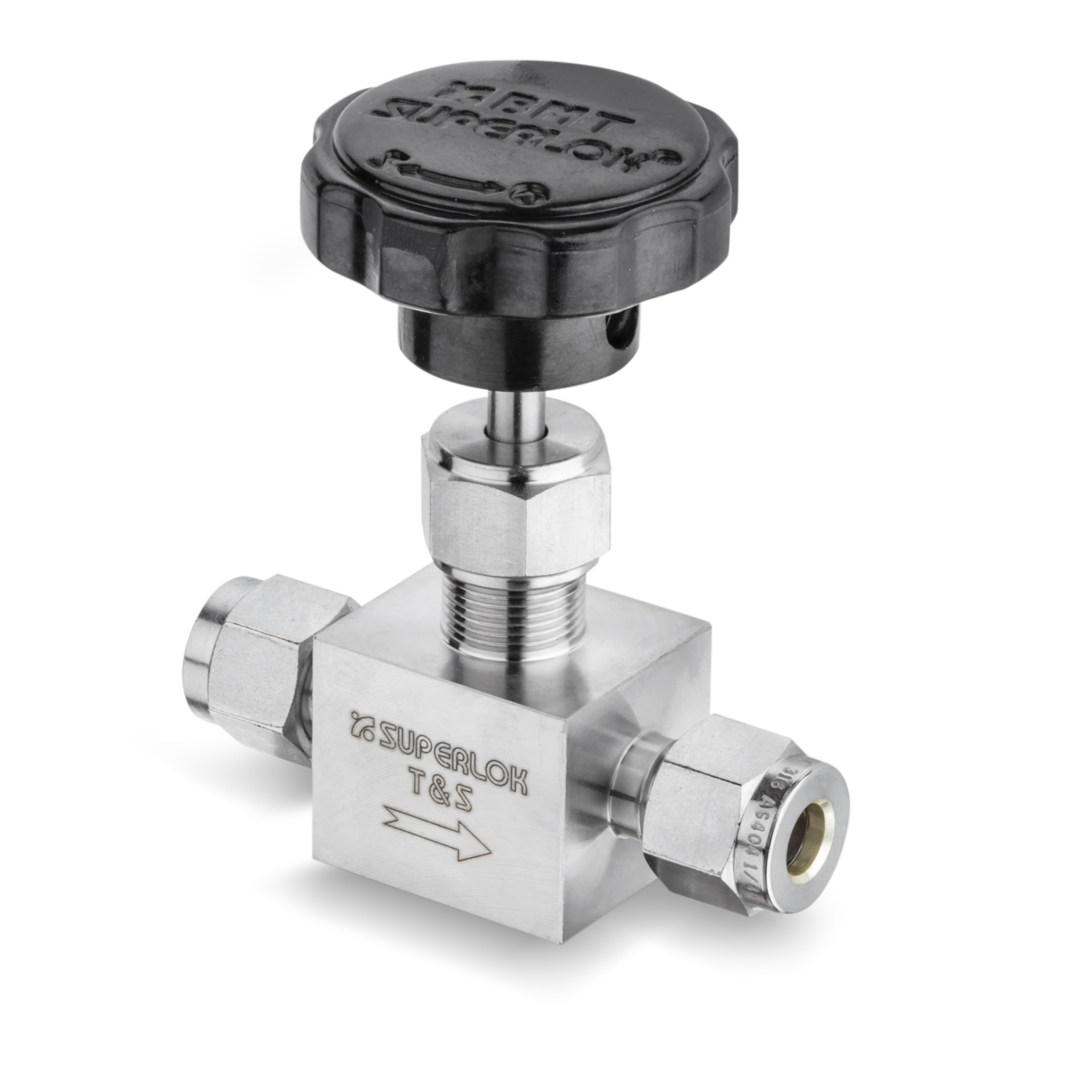

SBNV Needle Valves

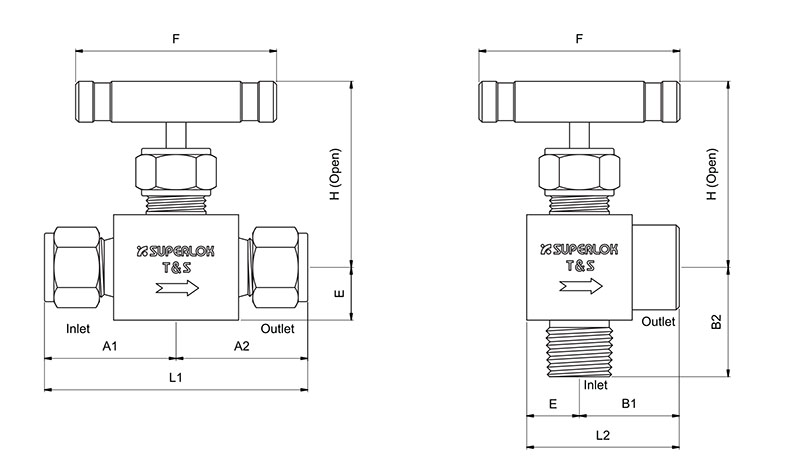

SBNV Needle Valves - Image 2
SBNV Needle Valves - Image 3

SBNV Needle Valves

Price range: $65.92 through $140.28

See individual part details below

Access our integral bonnet needle valves, precision-crafted for fine flow control in high-pressure fluid systems. These valves deliver leak-proof performance and exceptional durability, ensuring reliable operation in demanding industrial environments. Our bonnet needle valves are built for accuracy and longevity, making them perfect for precise fluid regulation. Browse our catalog to find tailored solutions for your system.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.

Request Quote (832) 843-7141
Description

Integral bonnet design Bar stock body Compact design Low operating torques Variety of End Connections Straight and Angle flow patterns Each and every valve is tested at the factory

Specifications
Inch/Metric Inch
Pressure Rating at 100 (38 ºC) Temperature 413bar, 6000psig
Superlok Part Type Needle Valve
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing -54 to 232ºC
Available Sizes
SBNV1-F-4N

SBNV Needle Valves SBNV1-F-4N

SBNV 1/4 in. Female National Pipe Taper (FNPT), -65 to 450 ºF Temperature Rating, Vee Tip, 6000 psi Pressure Rating Needle Valve
$65.92
$65.92
SBNV1-F-4N-MR

SBNV Needle Valves SBNV1-F-4N-MR

SBNV 1/4 in. Female National Pipe Taper (FNPT), -65 to 450 ºF Temperature Rating, Vee Tip, National Association of Corrosion Engineers (NACE) Rated, 6000 psi Pressure Rating Needle Valve
$96.52
$96.52
SBNV1-MF-4N

SBNV Needle Valves SBNV1-MF-4N

SBNV 1/4 in. Male National Pipe Taper (MNPT) x 1/4 in. Female National Pipe Taper (FNPT), -65 F to 450 ºF Temperature Rating, Vee Tip, 6000 psi Pressure Rating Needle Valve
$65.92
$65.92
SBNV1-S-4

SBNV Needle Valves SBNV1-S-4

SBNV 1/4 in. Outside Diameter, -65 to 450 ºF Temperature Rating, Vee Tip, Bar Handle, 6000 psi Pressure Rating Needle Valve
$76.00
$76.00
SBNV1-S-4-SS-KH

SBNV Needle Valves SBNV1-S-4-SS-KH

SBNV 1/4 in. Outside Diameter, Soft Stem Tip, Phenolic Handle, 6000 psi Pressure Rating Needle Valve
$76.00
$76.00
SBNV2-F-8N

SBNV Needle Valves SBNV2-F-8N

SBNV 1/2 in. Female National Pipe Taper (FNPT), -65 to 450 ºF Temperature Rating, Vee Tip, Bar Handle, 6000 psi Pressure Rating Needle Valve
$103.60
$103.60
SBNV2-F-8N-MR

SBNV Needle Valves SBNV2-F-8N-MR

SBNV 1/2 in. Female National Pipe Taper (FNPT), -65 to 450 ºF Temperature Rating, Vee Tip, National Association of Corrosion Engineers (NACE) Rated, 6000 psi Pressure Rating Needle Valve
$140.28
$140.28
SBNV2-MF-8N

SBNV Needle Valves SBNV2-MF-8N

SBNV 1/2 in. Male National Pipe Taper (MNPT) x 1/4 in. Female National Pipe Taper (FNPT), -65 F to 450 ºF Temperature Rating, Vee Tip, 6000 psi Pressure Rating Needle Valve
$101.15
$101.15
SBNV2-S-6

SBNV Needle Valves SBNV2-S-6

SBNV 3/8 in. Outside Diameter, -65 to 450 ºF Temperature Rating, Vee Tip, Bar Handle, 6000 psi Pressure Rating Needle Valve
$109.20
$109.20
SBNV2-S-8

SBNV Needle Valves SBNV2-S-8

SBNV 1/2 in. Outside Diameter, -65 to 450 ºF Temperature Rating, Vee Tip, Bar Handle, 6000 psi Pressure Rating Needle Valve
$107.46
$107.46
