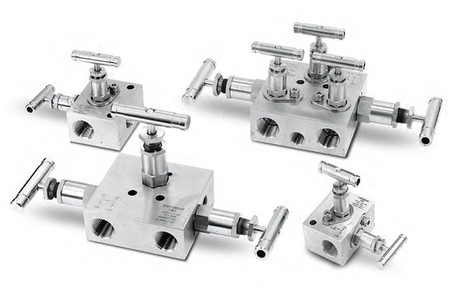

SM2V 2-Valve Manifold Valves
SM2V 2-Valve Manifold Valves - Image 2
SM2V 2-Valve Manifold Valves - Image 3
SM2V 2-Valve Manifold Valves - Image 4

SM2V 2-Valve Manifold Valves

Price range: $154.56 through $193.20

See individual part details below

Access our 2-valve manifold valves, engineered for precision isolation and pressure equalization in fluid systems. These valves deliver leak-proof reliability and exceptional durability, even in high-pressure environments. Designed for industrial efficiency, they ensure secure operation and system safety. Explore our catalog for high-performance solutions.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.

Request Quote (832) 843-7141
Description

2-, 3-, and 5-valves Instrument manifolds valves Pressure Rating up to 6000 psig (413 bar) at 100 ºF(37 ºC) Temperature up to 1200 ºF (648 ºC) with optional Grafoil packing All 316 stainless steel construction with PTFE packing

Specifications
Inch/Metric Inch
Orifice 0.125in, 3.2mm
Superlok Part Type Manifold Valve
Available Sizes
SM2V-F-8N

SM2V 2-Valve Manifold Valves SM2V-F-8N

SM2V 1/2 in. Female National Pipe Taper (FNPT) Thread, Horizontal Style, Remote Mount, 6000 psi Pressure Rating Valve Manifold Valve
$154.56
$154.56
SM2V-F-8N-G

SM2V 2-Valve Manifold Valves SM2V-F-8N-G

SM2V 1/2 in. Female National Pipe Taper (FNPT) Thread, Grafoil Packaging, Remote Mount, 6000 psi Pressure Rating Valve Manifold Valve
$163.80
$163.80
SM2VD-F-8N

SM2V 2-Valve Manifold Valves SM2VD-F-8N

SM2V 1/2 in. Female National Pipe Taper (FNPT) Thread x Flange, Vertical Style, Direct Mount, 6000 psi Pressure Rating Valve Manifold Valve
$193.20
$193.20
SM2VF-F-8N-G

SM2V 2-Valve Manifold Valves SM2VF-F-8N-G

SM2V 1/2 in. Female National Pipe Taper (FNPT) Thread x Flange, Grafoil Packaging, Direct Mount, 6000 psi Pressure Rating Valve Manifold Valve
$193.20
$193.20
