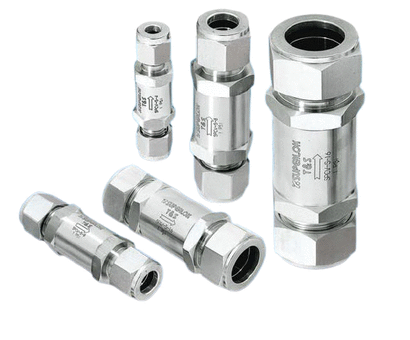

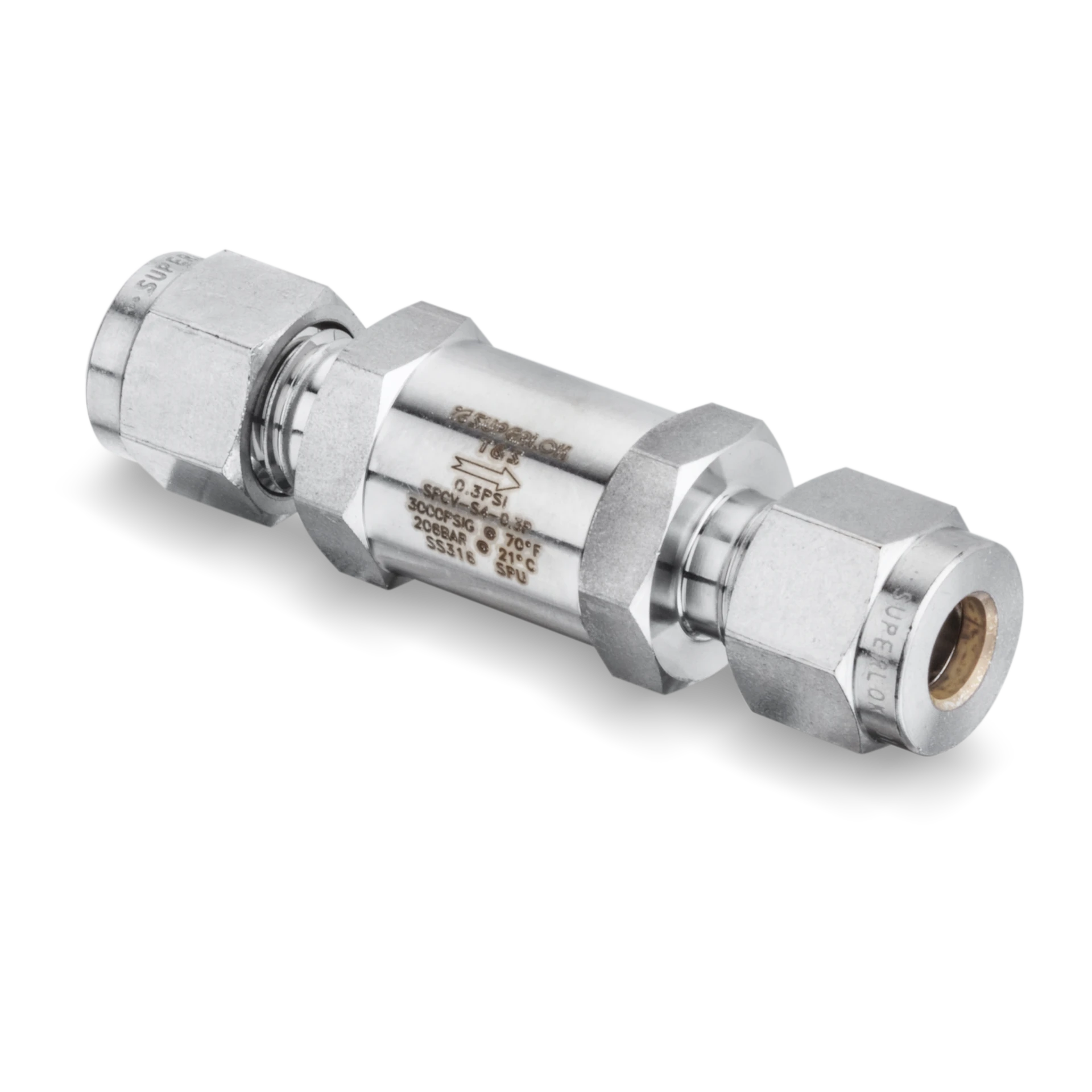

SPCV Check Valves
Price range: $37.46 through $77.28
See individual part details below
Access our check valves, crafted for reliable backflow prevention in demanding fluid systems. These valves ensure leak-proof performance and are built for durability in high-pressure environments. Engineered for industrial use, they deliver efficiency and precision. Explore our catalog to find dependable solutions.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Description
Fixed cracking pressure. Pressure rating up to 3000 psig at 70 ºF (21 ºC) Temperature rating up to 375 ºF (191 ºC) with Fluorocarbon (FKM) o-ring Variety of end connections. Each and every valves are tested at the factory
| Inch/Metric | Inch |
|---|---|
| Superlok Part Type | Check Valve |
| Temperature Rating for Buna N | -23 to 121ºC, -10 to 250ºF |
| Temperature Rating for Ethylene Propylene | -57 to 121ºC, -70 to 250ºF |
| Temperature Rating for Fluorocarbon (FKM) | -23 to 190ºC, -10 to 375ºF |
| Temperature Rating for Kalrez | -26 to 260ºC, -15 to 500ºF |
| Temperature Rating for Neoprene | -37 to 107ºC, -35 to 225ºF |
Available Sizes
SPCV Check Valves SPCV-S-4-3P
SPCV 1/4 in. Tube Outside Diameter D, #3 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$37.46
$37.46
SPCV Check Valves SPCV-S-4-5P
SPCV 1/4 in. Tube Outside Diameter D, #5 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$37.46
$37.46
SPCV Check Valves SPCV-S-4-10P
SPCV 1/4 in. Tube Outside Diameter D, #10 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$37.46
$37.46
SPCV Check Valves SPCV-S-6-1P
SPCV 3/8 in. Tube Outside Diameter D, #1 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$68.80
$68.80
SPCV Check Valves SPCV-S-6-10P
SPCV 3/8 in. Tube Outside Diameter D, #10 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$68.80
$68.80
SPCV Check Valves SPCV-S-6-25P
SPCV 3/8 in. Tube Outside Diameter D, #25 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$68.80
$68.80
SPCV Check Valves SPCV-S-8-1/3P
SPCV 1/2 in. Tube Outside Diameter D, #1/3 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$77.28
$77.28
SPCV Check Valves SPCV-S-8-1P
SPCV 1/2 in. Tube Outside Diameter D, #1 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$77.28
$77.28
SPCV Check Valves SPCV-S-8-10P
SPCV 1/2 in. Tube Outside Diameter D, #10 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$77.28
$77.28
SPCV Check Valves SPCV-S-8-25P
SPCV 1/2 in. Tube Outside Diameter D, #25 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure Check Valve
$77.28
$77.28
