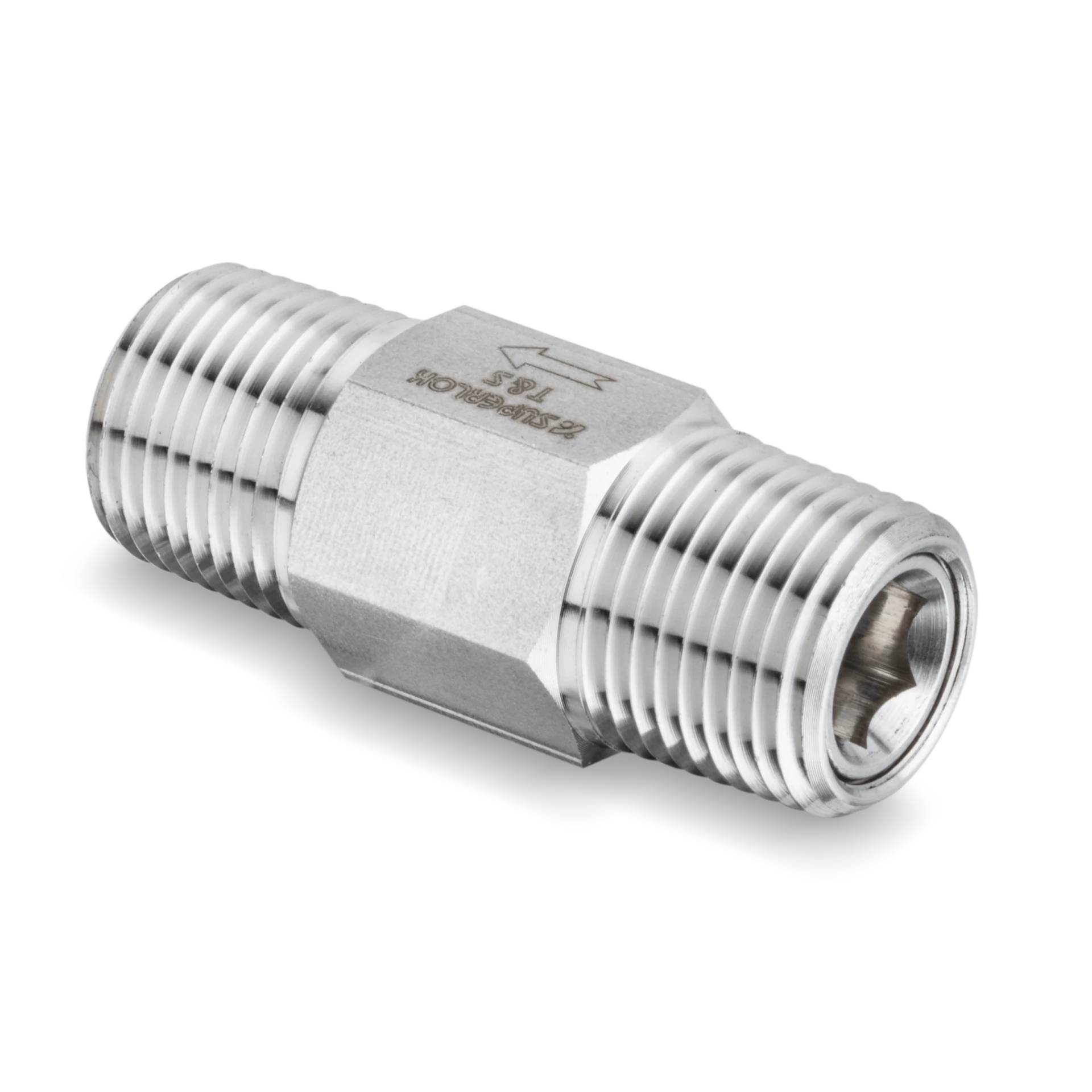

SOCV One Piece Check Valves

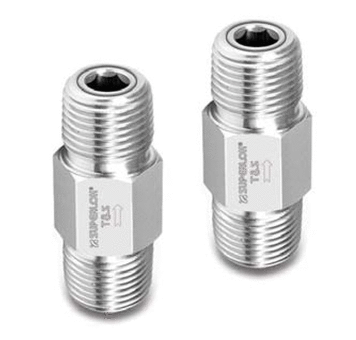

SOCV One Piece Check Valves - Image 2

SOCV One Piece Check Valves

Price range: $28.56 through $68.60

See individual part details below

Access our one-piece check valves, designed for seamless and reliable backflow prevention in fluid systems. These valves provide leak-free functionality and durability, even in high-pressure applications. Perfect for industrial systems, they ensure efficiency and reliability. Check out our catalog for high-quality solutions.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.

Request Quote (832) 843-7141
Description

Pressure rating up to 6,000 psig (413 bar) at 100 ºF (37 ºC) Temperature rating up to 375 ºF (190 ºC) with Fluorocarbon (FKM) seal standard Cracking pressure fixed from 1/3 to 25 psig (0.02 to 1.7 bar) Variety of end connections 316 stainless steel body material as standard Each and every valve is tested at the factory

Specifications
Back Pressure at 70 (20 ºC) Temperature 206bar, 3000psig
Inch/Metric Inch
Operating Pressure [Min] 206bar, 3000psig
Superlok Part Type Check Valve
Temperature Rating for Fluorocarbon (FKM) -23 to 190ºC, -10 to 375ºF
Temperature Rating for Nitrile Butadiene Rubber -23 to 121ºC, -10 to 250ºF
Available Sizes
SOCV1-M-4N-1/3P

SOCV One Piece Check Valves SOCV1-M-4N-1/3P

SOCV 1/4 in. Male National Pipe Taper (MNPT), #1/3 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure One Piece Check Valve
$28.56
$28.56
SOCV1-M-4N-1/3P-E

SOCV One Piece Check Valves SOCV1-M-4N-1/3P-E

SOCV 1/4 in. Male National Pipe Taper (MNPT), #1/3 psi Nominal Cracking Pressure Spring, E.P. O-Ring, 3000 psi Working Pressure One Piece Check Valve
SOCV1-M-4N-1P

SOCV One Piece Check Valves SOCV1-M-4N-1P

SOCV 1/4 in. Male National Pipe Taper (MNPT), #1 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure One Piece Check Valve
$28.56
$28.56
SOCV1-M-4N-5P

SOCV One Piece Check Valves SOCV1-M-4N-5P

SOCV 1/4 in. Male National Pipe Taper (MNPT), #5 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure One Piece Check Valve
$28.56
$28.56
SOCV1-M-4N-10P

SOCV One Piece Check Valves SOCV1-M-4N-10P

SOCV 1/4 in. Male National Pipe Taper (MNPT), #10 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure One Piece Check Valve
$28.56
$28.56
SOCV1-M-4N-15P-E

SOCV One Piece Check Valves SOCV1-M-4N-15P-E

SOCV 1/4 in. Male National Pipe Taper (MNPT), #15 psi Nominal Cracking Pressure Spring, E.P. O-Ring, 3000 psi Working Pressure One Piece Check Valve
$28.56
$28.56
SOCV1-M-4N-25P

SOCV One Piece Check Valves SOCV1-M-4N-25P

SOCV 1/4 in. Male National Pipe Taper (MNPT), #25 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure One Piece Check Valve
$28.56
$28.56
SOCV3-M-8N-5P

SOCV One Piece Check Valves SOCV3-M-8N-5P

SOCV 1/2 in. Male National Pipe Taper (MNPT), #25 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure One Piece Check Valve
$68.04
$68.04
SOCV3-M-8N-25P

SOCV One Piece Check Valves SOCV3-M-8N-25P

SOCV 1/2 in. Male National Pipe Taper (MNPT), #25 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure One Piece Check Valve
$68.04
$68.04
SOCV4-MF-8N-1P

SOCV One Piece Check Valves SOCV4-MF-8N-1P

SOCV 1/2 in. Male National Pipe Taper (MNPT) x 1/2 in. Female National Pipe Taper (FNPT), #1 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure One Piece Check Valve
$68.60
$68.60
