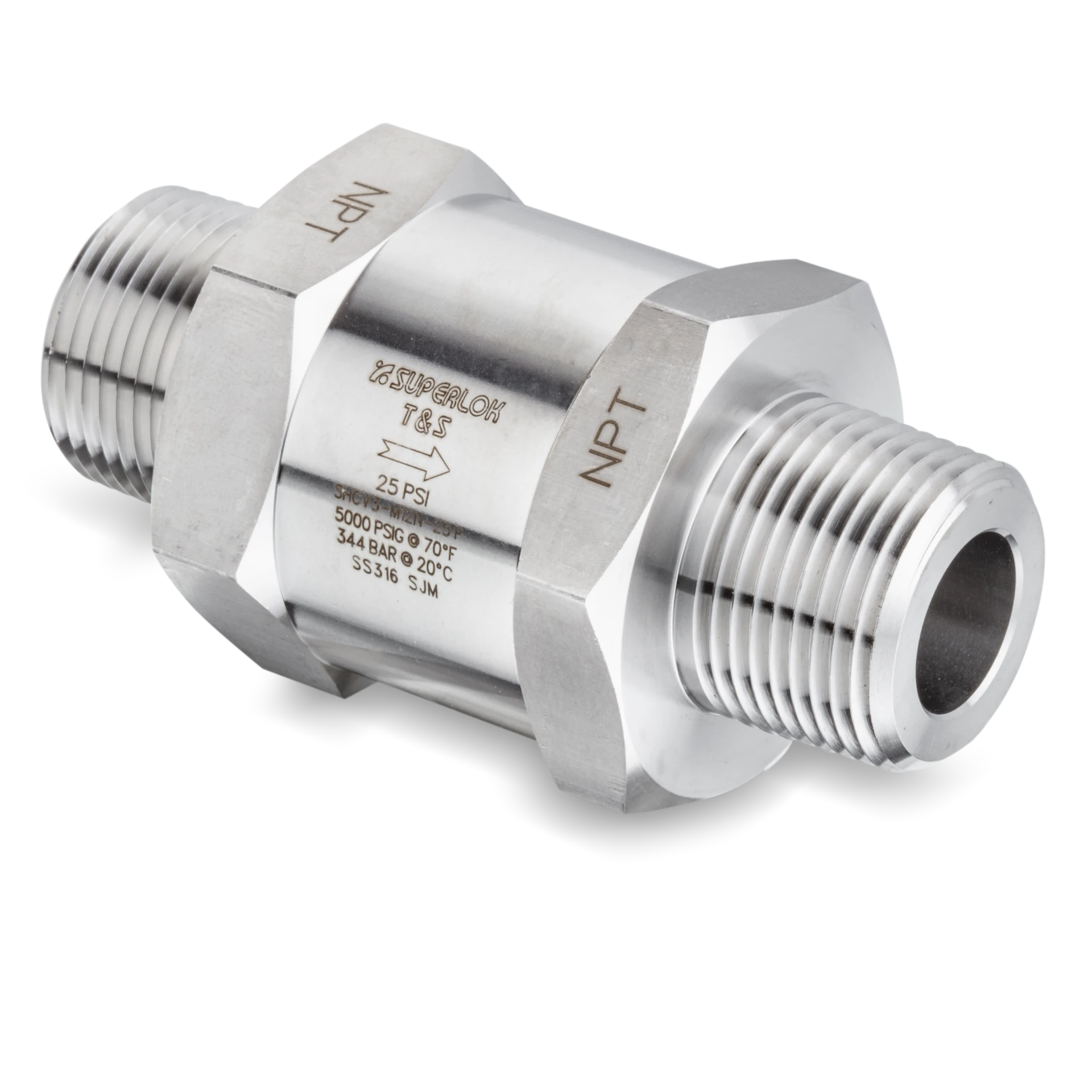

SHCV Check Valves

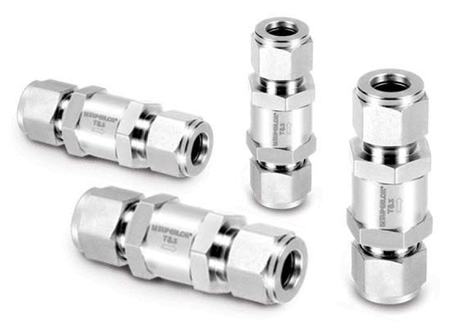

SHCV Check Valves - Image 2

SHCV Check Valves

Price range: $73.38 through $282.42

See individual part details below

Access our high pressure check valves, crafted for dependable prevention of backflow in fluid systems. These valves deliver leak-proof performance and are designed for durability under high-pressure conditions. Ideal for industrial applications, they ensure efficiency and precision. Explore our catalog for high-quality solutions.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.

Request Quote (832) 843-7141
Description

Pressure rating up to 6,000 psig (413 bar) at 100 ºF(37 ºC) Temperature rating up to 375 ºF (190 ºC) with Fluorocarbon (FKM) seal standard Cracking pressure fixed from 1/3 to 25 psig (0.02 to 1.7 bar) Variety of end connections 316 stainless steel body material as standard Each and every valve is tested at the factory

Specifications
Inch/Metric Inch
Superlok Part Type Check Valve
Temperature Rating for Ethylene Propylene -45 to 148ºC, -50 to 300ºF
Temperature Rating for Fluorocarbon (FKM) -23 to 190ºC, -10 to 375ºF
Temperature Rating for Nitrile Butadiene Rubber -23 to 121ºC, -10 to 250ºF
Available Sizes
SHCV2-S-8-25P-MR

SHCV Check Valves SHCV2-S-8-25P-MR

SHCV 1/2 in. Tube Outside Diameter D, #25 psi Nominal Cracking Pressure Spring, National Association of Corrosion Engineers Rated, 6000 psi Working Pressure Check Valve
$95.76
$95.76
SHCV2-S-8-100P

SHCV Check Valves SHCV2-S-8-100P

SHCV 1/2 in. Tube Outside Diameter D, #100 psi Nominal Cracking Pressure Spring, 6000 psi Working Pressure Check Valve
$73.38
$73.38
SHCV3-F-16N-1P

SHCV Check Valves SHCV3-F-16N-1P

SHCV 1 in. Female National Pipe Taper (FNPT) #1 psi Nominal Cracking Pressure Spring, 4100 psi Working Pressure Check Valve
$282.42
$282.42
SHCV3-S-12-1/3P

SHCV Check Valves SHCV3-S-12-1/3P

SHCV 3/4 in. Tube Outside Diameter D, #1/3 psi Nominal Cracking Pressure Spring, 5000 psi Nominal Cracking Pressure Check Valve
$188.16
$188.16
SHCV3-S-12-1/3P-E

SHCV Check Valves SHCV3-S-12-1/3P-E

SHCV 3/4 in. Tube Outside Diameter D, #1/3 psi Nominal Cracking Pressure Spring, E.P. O-ring, 5000 psi Working Pressure Check Valve
$188.16
$188.16
SHCV3-S-12-1P

SHCV Check Valves SHCV3-S-12-1P

SHCV 3/4 in. Tube Outside Diameter D, #1 psi Nominal Cracking Pressure Spring, 5000 psi Nominal Cracking Pressure Check Valve
$188.16
$188.16
SHCV3-S-12-1P-E

SHCV Check Valves SHCV3-S-12-1P-E

SHCV 3/4 in. Tube Outside Diameter D, #1 psi Nominal Cracking Pressure Spring, E.P. O-ring, 5000 psi Nominal Cracking Pressure Check Valve
$188.16
$188.16
SHCV3-S-16-1/3P-N

SHCV Check Valves SHCV3-S-16-1/3P-N

SHCV 1 in. Tube Outside Diameter D, #1/3 psi Nominal Cracking Pressure Spring, Buna N O-ring, 4700 psi Nominal Cracking Pressure Check Valve
$233.94
$233.94
SHCV3-S-16-1P

SHCV Check Valves SHCV3-S-16-1P

SHCV 1 in. Tube Outside Diameter D, #1 psi Nominal Cracking Pressure Spring, 4700 psi Working Pressure Check Valve
$233.94
$233.94
SHCV3-S-16-1P-E

SHCV Check Valves SHCV3-S-16-1P-E

SHCV 1 in. Tube Outside Diameter D, #1 psi Nominal Cracking Pressure Spring, E.P. O-ring, 4700 psi Working Pressure Check Valve
$233.94
$233.94
