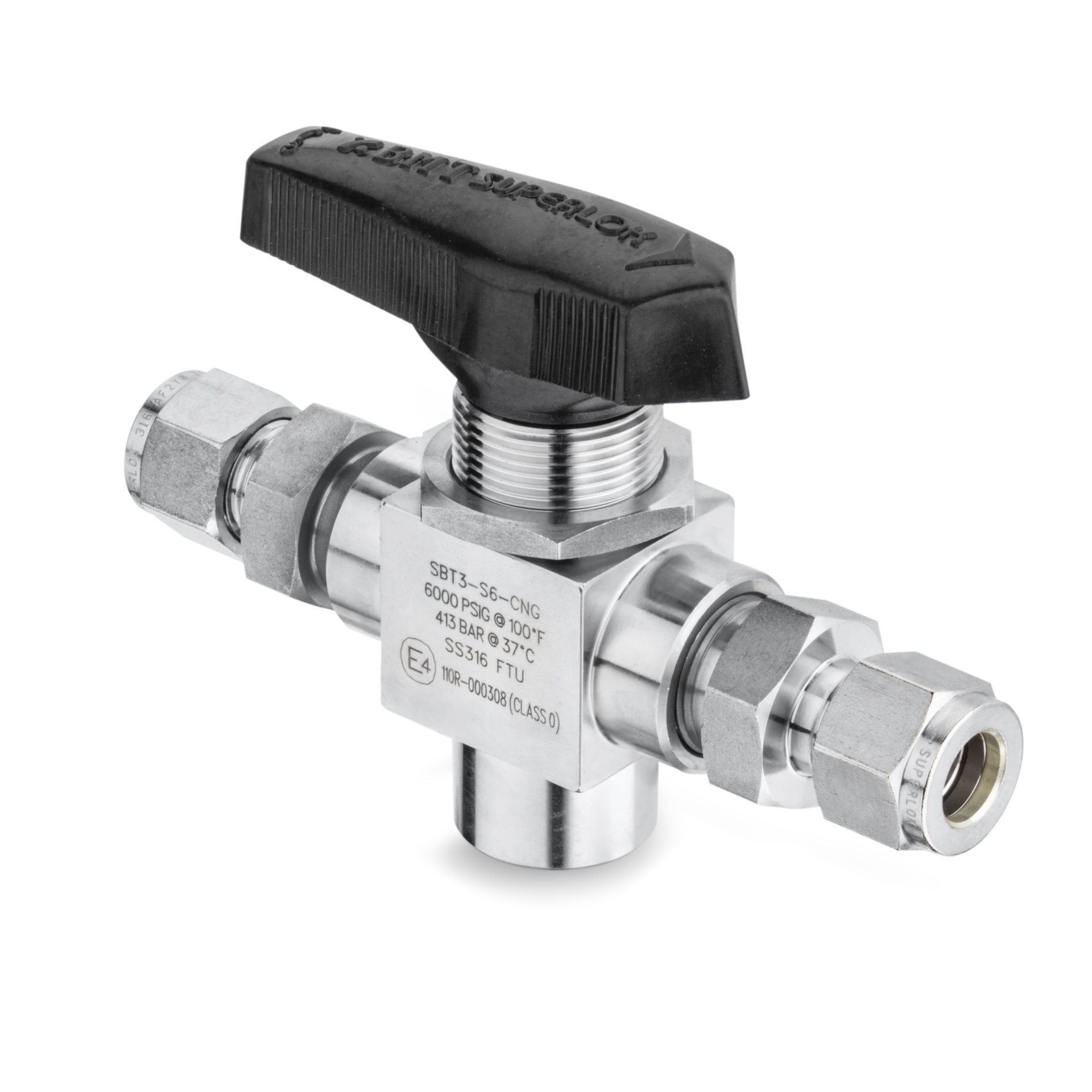

SBT Series Ball Valves

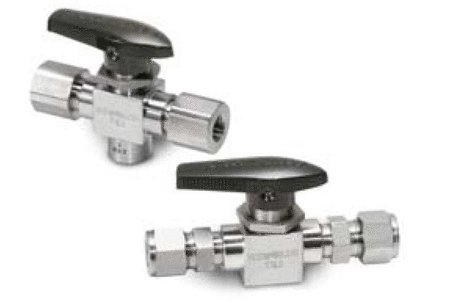

SBT Series Ball Valves - Image 2

SBT Series Ball Valves

Price range: $149.31 through $226.80

See individual part details below

Access our SBT series ball valves, designed for precise fluid control in high-pressure systems. These valves deliver leak-proof performance, durability, and easy operation. Engineered for industrial applications, they ensure reliability and efficiency. Browse our catalog to find tailored solutions for your system.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.

Request Quote (832) 843-7141
Description

PEEK trunnion bearings for longer cycle life Two-way and three way designs Blow-out resistant two-piece ball/stem Low operating torque Panel mountable to 9.7mm thickness Handle indicates direction of flow Positive handle stops 100% factory tested Compact, maximum flow design

Specifications
Inch/Metric Inch
Orifice 4.8mm
Superlok Part Type Ball Valve
Available Sizes
SBT2-S-4

SBT Series Ball Valves SBT2-S-4

SBT 1/4 in. Tube Outside Diameter D 0 to 450 ºF, 6000 psig Pressure Rating Trunnion Ball Valve
$149.31
$149.31
SBT2-S-4-CNG

SBT Series Ball Valves SBT2-S-4-CNG

SBT 1/4 in. Tube Outside Diameter D -40 to 250 ºF, 6000 psig Pressure Rating, Buna-N O-Ring, Stainless Steel Ball Valve
$159.60
$159.60
SBT2-S-6

SBT Series Ball Valves SBT2-S-6

SBT 3/8 in. Tube Outside Diameter D 0 to 450 ºF, 6000 psig Pressure Rating Trunnion Ball Valve
$159.92
$159.92
SBT2-S-6-CNG

SBT Series Ball Valves SBT2-S-6-CNG

SBT 3/8 in. Tube Outside Diameter D -40 to 250 ºF, 6000 psig Pressure Rating, Buna-N O-Ring, Stainless Steel Ball Valve
$176.40
$176.40
SBT2-S-8

SBT Series Ball Valves SBT2-S-8

SBT 1/2 in. Tube Outside Diameter D 0 to 450 ºF, 6000 psig Pressure Rating Trunnion Ball Valve
$176.00
$176.00
SBT2-S-8-CNG

SBT Series Ball Valves SBT2-S-8-CNG

SBT 1/2 in. Tube Outside Diameter D -40 to 250 ºF, 6000 psig Pressure Rating, Buna-N O-Ring, Stainless Steel Ball Valve
$193.20
$193.20
SBT3-F-4N-CNG

SBT Series Ball Valves SBT3-F-4N-CNG

SBT 1/4 in. Female National Pipe Taper (FNPT) Thread, -40 to 250 ºF, 6000 psig Pressure Rating, Peek Seats, Buna-N O-Ring Ball Valve
$191.52
$191.52
SBT3-S-6-CNG

SBT Series Ball Valves SBT3-S-6-CNG

SBT 3/8 in. Tube Outside Diameter D -40 to 250 ºF, 6000 psig Pressure Rating, Polychlorotrifluoroethylene (PCTFE) Seats, Buna O-Ring Ball Valve
$198.24
$198.24
SBTH3-F-4N

SBT Series Ball Valves SBTH3-F-4N

SBT 1/4 in. Female National Pipe Taper (FNPT) Thread, 3-Way, Peek Seats, 0 to 450 ºF, 10,000 psi Pressure Rating Ball Valve
$222.43
$222.43
SBTH3-S-4

SBT Series Ball Valves SBTH3-S-4

SBT 1/4 in. Tube Outside Diameter D 3-Way, Peek Seats, 0 to 450 ºF, 10,000 psi Pressure Rating Ball Valve
$226.80
$226.80
