SQC (DESO) Quick Connect Stems
Price range: $34.26 through $68.90
See individual part details below
Access our DESO quick connect stems, crafted for reliable fluid connections in demanding environments. These stems ensure leak-proof performance and compatibility with quick connect systems. Designed for industrial applications, they offer durability, precision, and ease of use. Browse our catalog for dependable components.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Description
Simple push-pull action to connect and disconnect lines-no tools required. Plug and body are available valved or unvalved. Valves automatically open when connected and shut off when disconnected to minimize the loss of liquids or gases.
| Inch/Metric | Inch |
|---|---|
| Plug Series | DO |
| Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature | 17.2bar, 250psig |
| Superlok Part Type | Connect Stem |
Available Sizes

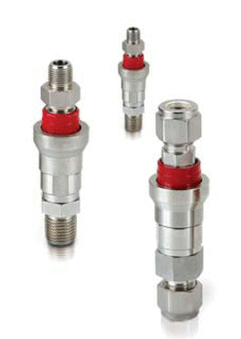

SQC (DESO) Quick Connect Stems SQC1P-M2N-DO
SQC 1/8 in. x 1/8 in. Male National Pipe Taper (MNPT) Quick Connect Stem (DESO)
$36.21
$36.21
SQC (DESO) Quick Connect Stems SQC1P-M4N-DO
SQC 1/4 in. x 1/4 in. Male National Pipe Taper (MNPT) Quick Connect Stem (DESO)
$35.29
$35.29
SQC (DESO) Quick Connect Stems SQC1P-S4-DO
SQC 1/4 in. x 1/4 in. Tube Outside Diameter Quick Connect Stem (DESO)
$34.26
$34.26
SQC (DESO) Quick Connect Stems SQC2P-F6N-DO
SQC 3/8 in. x 3/8 in. Female National Pipe Taper (FNPT) Quick Connect Stem (DESO)
$40.76
$40.76
SQC (DESO) Quick Connect Stems SQC2P-M4N-DO
SQC 1/4 in. x 1/4 in. Male National Pipe Taper (MNPT) Quick Connect Stem (DESO)
$40.66
$40.66
SQC (DESO) Quick Connect Stems SQC2P-M6N-DO
SQC 3/8 in. x 3/8 in. Male National Pipe Taper (MNPT) Quick Connect Stem (DESO)
$44.37
$44.37
SQC (DESO) Quick Connect Stems SQC2P-S6-DO
SQC 3/8 in. x 3/8 in. Tube Outside Diameter Quick Connect Stem (DESO)
$45.50
$45.50
SQC (DESO) Quick Connect Stems SQC2P-S6-DO-BH
SQC 3/8 in. x 3/8 in. Tube Outside Diameter Bulkhead Quick Connect Stem (DESO)
$51.07
$51.07
SQC (DESO) Quick Connect Stems SQC3-M8N-DO
SQC 1/2 in. x 1/2 in. Male National Pipe Taper (MNPT) Quick Connect Stem (DESO)
SQC (DESO) Quick Connect Stems SQC3P-F8N-DO
SQC 1/2in. x 1/2 in. Female National Pipe Taper (FNPT) Quick Connect Stem (DESO)
$68.90
$68.90
