SFQC Full Flow Quick Connect Stems
Price range: $18.11 through $30.64
See individual part details below
Access our full flow quick connect stems, designed for seamless integration with quick connect bodies. These components deliver optimal flow rates and leak-proof performance, ensuring efficiency in high-pressure fluid systems. Built for industrial applications, they provide durability and precision. Explore our catalog for tailored solutions.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Proven ball – lock mechanism provides positive connection. Simple push – pull action to connect and disconnect lines – no tools required. Compact coupling offers full flow without orifice restrictions. O-ring is easily replaced without disassembling
| Inch/Metric | Inch |
|---|---|
| Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature | 413bar, 600psig |
| Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature | 6.8bar, 100psig |
| Pressure Rating Brass with NBR O-Ring at 250 (121 ºC) Temperature | 6.8bar, 100psig |
| Superlok Part Type | Connect Stem |

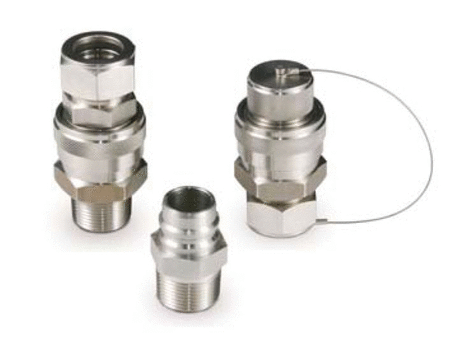

SFQC Full Flow Quick Connect Stems SFQC2P-F4N
SFQC Full Flow Quick Connect Stems SFQC2P-M4N
SFQC Full Flow Quick Connect Stems SFQC2P-S4
SFQC Full Flow Quick Connect Stems SFQC2P-S6
