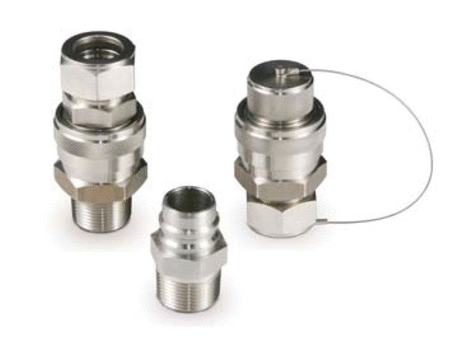

SFQC Full Flow Quick Connect Bodies
Price range: $38.07 through $65.07
See individual part details below
Access our full flow quick connect bodies, designed for fast and efficient fluid connections. These components ensure optimal flow rates and leak-proof performance in demanding environments. Built for industrial use, they offer durability and precision in high-pressure systems. Explore our catalog for reliable quick connect solutions.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Proven ball – lock mechanism provides positive connection. Simple push – pull action to connect and disconnect lines – no tools required. Compact coupling offers full flow without orifice restrictions. O-ring is easily replaced without disassembling
| Inch/Metric | Inch |
|---|---|
| Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature | 413bar, 600psig |
| Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature | 6.8bar, 100psig |
| Pressure Rating Brass with NBR O-Ring at 250 (121 ºC) Temperature | 6.8bar, 100psig |
| Superlok Part Type | Connect Body |
SFQC Full Flow Quick Connect Bodies SFQC2B-F4N
SFQC Full Flow Quick Connect Bodies SFQC2B-M4N
SFQC Full Flow Quick Connect Bodies SFQC2B-S4
SFQC Full Flow Quick Connect Bodies SFQC2B-S6
SFQC Full Flow Quick Connect Bodies SFQC3B-M8N
