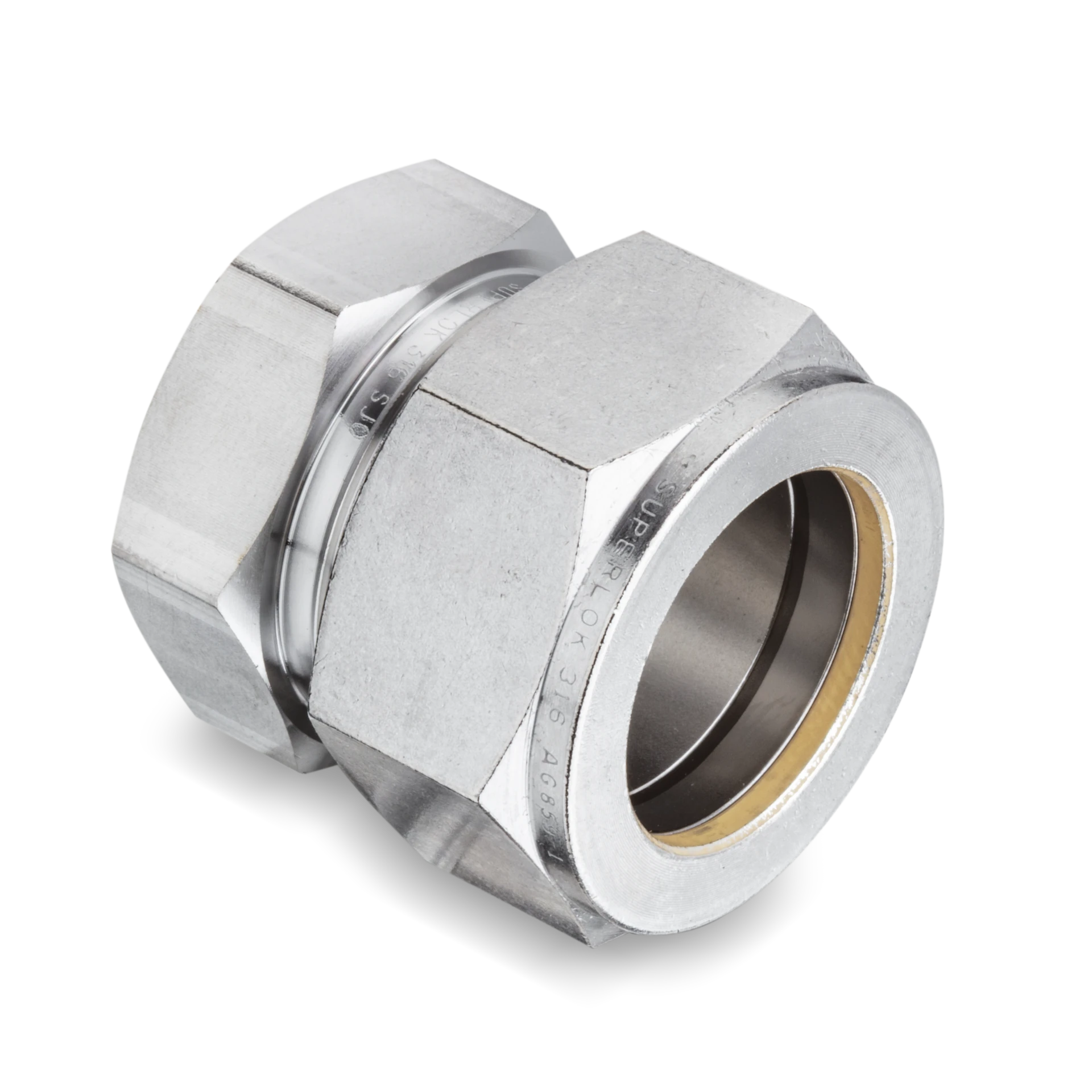

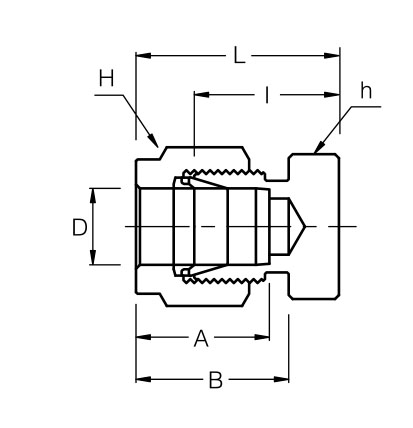

Print Page Email Page SC Fitting Caps $3.04 – $26.04Price range: $3.04 through $26.04 See individual part details below Request Quote (832) 843-7141 Description Specifications Superlok Part Type Fitting Cap Available Sizes SC Fitting Caps SC-2 SC 1/8 in. Tube Outside Diameter D Fitting Cap $5.60 SC Fitting Caps quantity Add to Cartor Quote Specifications Dimensions Dimensions Dimension A 12.70mm Dimension B 15.24mm Dimension I 13.46mm Dimension L 20.06mm Specifications Inch/Metric Inch Tube Outside Diameter D 1/8in, mm Width Across Flats h 7/16in, mm $5.60 SC Fitting Caps quantity Add to Cartor Quote SC Fitting Caps SC-4 SC 1/4 in. Tube Outside Diameter D Fitting Cap $4.62 SC Fitting Caps quantity Add to Cartor Quote Specifications Dimensions Dimensions Dimension A 15.24mm Dimension B 17.78mm Dimension I 16.00mm Dimension L 23.36mm Specifications Inch/Metric Inch Tube Outside Diameter D 1/4in, mm Width Across Flats h 1/2in, mm $4.62 SC Fitting Caps quantity Add to Cartor Quote SC Fitting Caps SC-6 SC 3/8 in. Tube Outside Diameter D Fitting Cap $3.04 SC Fitting Caps quantity Add to Cartor Quote Specifications Dimensions Dimensions Dimension A 16.76mm Dimension B 19.30mm Dimension I 18.28mm Dimension L 25.65mm Specifications Inch/Metric Inch Tube Outside Diameter D 3/8in, mm Width Across Flats h 5/8in, mm $3.04 SC Fitting Caps quantity Add to Cartor Quote SC Fitting Caps SC-6M SC 6 mm Tube Outside Diameter D Fitting Cap $4.96 SC Fitting Caps quantity Add to Cartor Quote Specifications Dimensions Dimensions Dimension A 15.3mm Dimension B 17.7mm Dimension I 15.7mm Dimension L 23.1mm Specifications Inch/Metric Metric Tube Outside Diameter D in, 6mm Width Across Flats h in, 14mm $4.96 SC Fitting Caps quantity Add to Cartor Quote SC Fitting Caps SC-10 SC 5/8 in. Tube Outside Diameter D Fitting Cap $10.30 SC Fitting Caps quantity Add to Cartor Quote Specifications Dimensions Dimensions Dimension A 24.38mm Dimension B 21.84mm Dimension I 19.81mm Dimension L 29.97mm Specifications Inch/Metric Inch Tube Outside Diameter D 5/8in, mm Width Across Flats h 15/16in, mm $10.30 SC Fitting Caps quantity Add to Cartor Quote SC Fitting Caps SC-10M SC 10 mm Tube Outside Diameter D Fitting Cap $6.14 SC Fitting Caps quantity Add to Cartor Quote Specifications Dimensions Dimensions Dimension A 17.2mm Dimension B 19.5mm Dimension I 19.0mm Dimension L 26.6mm Specifications Inch/Metric Metric Tube Outside Diameter D in, 10mm Width Across Flats h in, 18mm $6.14 SC Fitting Caps quantity Add to Cartor Quote SC Fitting Caps SC-12 SC 3/4 in. Tube Outside Diameter D Fitting Cap $13.84 SC Fitting Caps quantity Add to Cartor Quote Specifications Dimensions Dimensions Dimension A 24.38mm Dimension B 21.84mm Dimension I 23.33mm Dimension L 33.49mm Specifications Inch/Metric Inch Tube Outside Diameter D 3/4in, mm Width Across Flats h 1-1/16in, mm $13.84 SC Fitting Caps quantity Add to Cartor Quote SC Fitting Caps SC-12M SC 12 mm Tube Outside Diameter D Fitting Cap $9.67 SC Fitting Caps quantity Add to Cartor Quote Specifications Dimensions Dimensions Dimension A 22.8mm Dimension B 22.0mm Dimension I 19.0mm Dimension L 29.1mm Specifications Inch/Metric Metric Tube Outside Diameter D in, 12mm Width Across Flats h in, 22mm $9.67 SC Fitting Caps quantity Add to Cartor Quote SC Fitting Caps SC-14 SC 7/8 in. Tube Outside Diameter D Fitting Cap $23.36 SC Fitting Caps quantity Add to Cartor Quote Specifications Dimensions Dimensions Dimension A 25.90mm Dimension B 21.84mm Dimension I 23.87mm Dimension L 34.03mm Specifications Inch/Metric Inch Tube Outside Diameter D 7/8in, mm Width Across Flats h 1-3/16in, mm $23.36 SC Fitting Caps quantity Add to Cartor Quote SC Fitting Caps SC-16 SC 1 in. Tube Outside Diameter D Fitting Cap $26.04 SC Fitting Caps quantity Add to Cartor Quote Specifications Dimensions Dimensions Dimension A 31.24mm Dimension B 26.41mm Dimension I 26.16mm Dimension L 38.35mm Specifications Inch/Metric Inch Tube Outside Diameter D 1in, mm Width Across Flats h 1-3/8in, mm $26.04 SC Fitting Caps quantity Add to Cartor Quote
