SPME 20-20U
$198.45

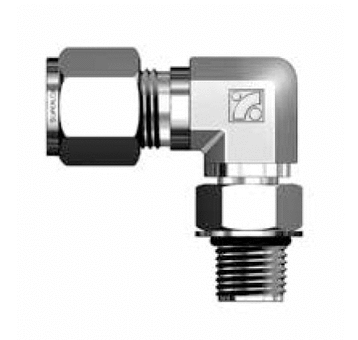

SPME 1-1/4 in. Tube Outside Diameter D x 1-5/8-12 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow
Description
SPME 1-1/4 in. Tube Outside Diameter D x 1-5/8-12 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow
| Angle | 90º |
|---|---|
| End Size | 1-5/8-12, in |
| End Type | Society of Automotive Engineering (SAE)/MS Straight Thread |
| Inch/Metric | Inch |
| Tube Outside Diameter D | 1 1/4in |
| Width Across Flats H | 1-7/8in |
| Width Across Flats h1 | 1-7/8in |
| Width Across Flats h2 | 1-7/8in |
| Dimension A | 41.15mm |
|---|---|
| Dimension B | 38.86mm |
| Dimension C | 54.86mm |
| Dimension I | 45.72mm |
| Dimension L | 67.82mm |
| Dimension L1 | 58.17mm |
| Dimension d [Min] | 27.69mm |
