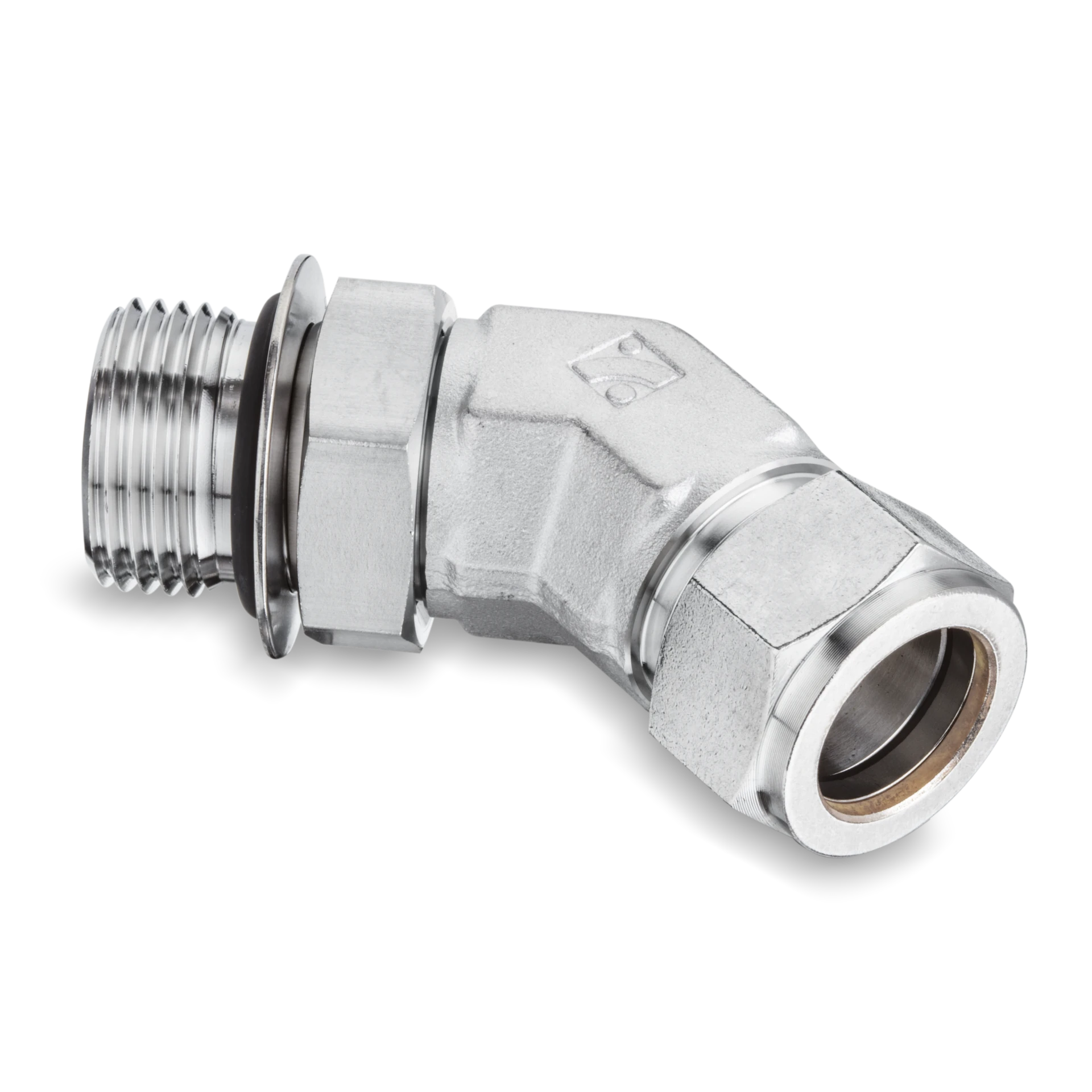

SPHME Positionable 45 Degree Male Elbows
Price range: $21.63 through $21.63
See individual part details below
Access our positionable 45-degree male elbows, designed for precise and adjustable directional changes in fluid systems. These fittings ensure leak-proof connections and exceptional durability in demanding environments. Ideal for industrial applications, they provide flexibility and reliability. Browse our catalog to find the perfect solutions for your needs.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Description
| Angle | 45º |
|---|---|
| End Size | 43359 |
| End Type | Society of Automotive Engineering (SAE)/MS Straight Thread (U) |
| Inch/Metric | Inch |
| Outside Diameter Pipe Size (P) | 21.30mm |
| Superlok Part Type | Positionable Male Elbows |

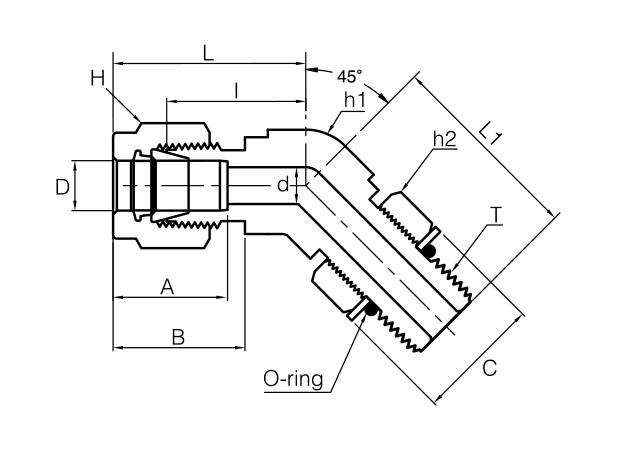

| Tube Outside Diameter D | 3/8in |
| Width Across Flats H | 11/16in |
| Width Across Flats h1 | 5/8in |
| Width Across Flats h2 | 11/16in |
| Dimension A | 16.76mm |
|---|---|
| Dimension B | 19.30mm |
| Dimension C | 20.07mm |
| Dimension I | 20.57mm |
| Dimension L | 27.94mm |
| Dimension L1 | 28.19mm |
| Dimension d [Min] | 7.11mm |
Available Sizes
SPHME Positionable 45 Degree Male Elbows SPHME 6-6U
SPHME Positionable 45 Degree Male Elbows, Connects Fractional Tubes to SAE/MS Straight Thread
$21.63
