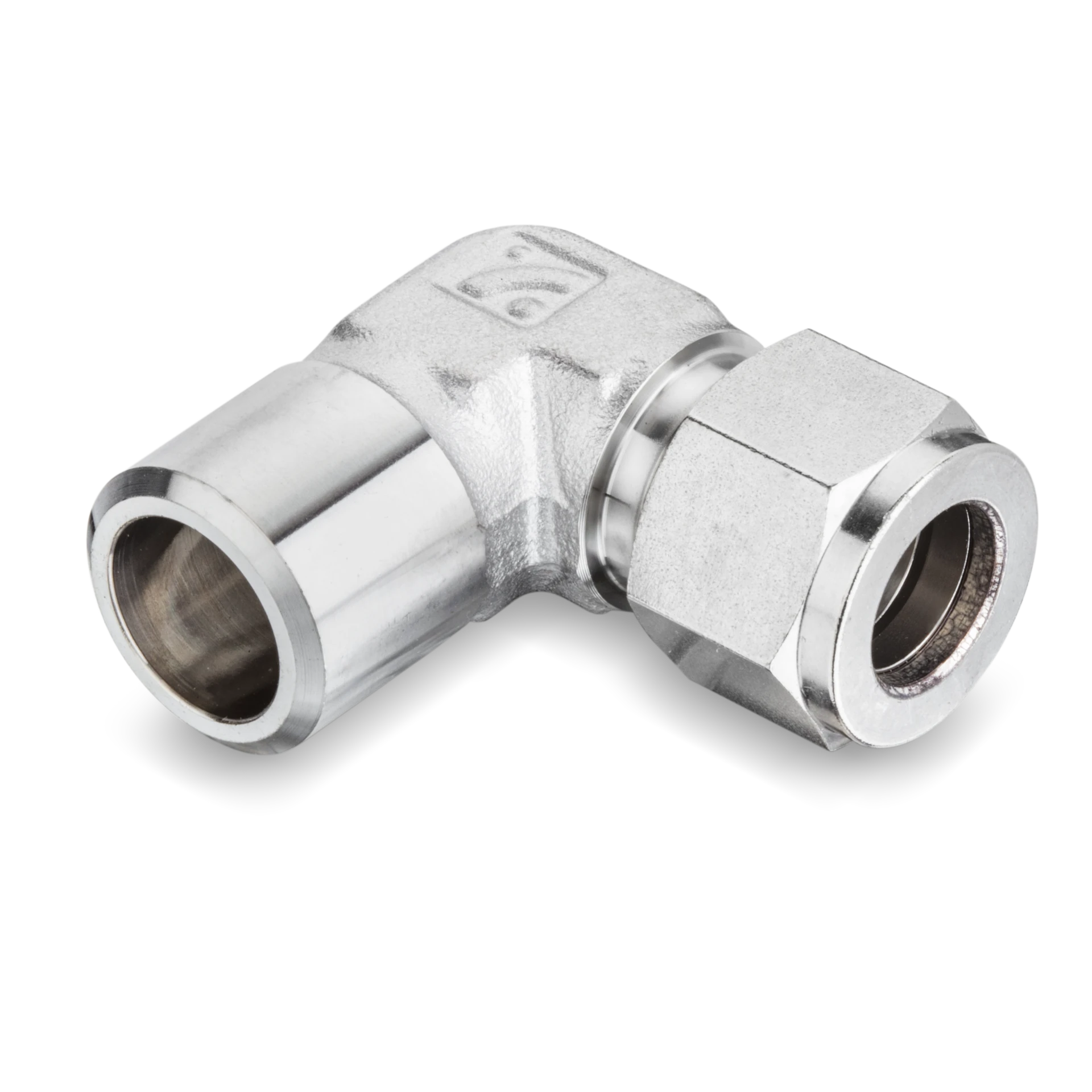

SMPWE Male Pipe Weld Elbows
Price range: $27.94 through $27.94
See individual part details below
Access our male pipe weld elbows, crafted for robust, permanent connections in fluid systems. These fittings ensure leak-free performance and withstand extreme conditions, making them ideal for high-pressure and high-temperature applications. Explore our catalog today to find reliable, precision-engineered solutions.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Description

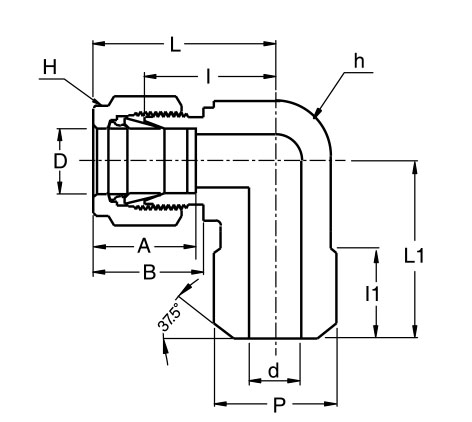

| Angle | 90º |
|---|---|
| Inch/Metric | Inch |
| Outside Diameter Pipe Size (P) | 21.30mm |
| Superlok Part Type | Weld Elbow |
| Tube Outside Diameter D | 1/2in |
| Width Across Flats H | 7/8in |
| Dimension A | 22.86mm |
|---|---|
| Dimension B | 21.84mm |
| Dimension I | 25.90mm |
| Dimension I1 | 19.05mm |
| Dimension L | 36.06mm |
| Dimension L1 | 33.02mm |
| Dimension d [Min] | 10.41mm |
Available Sizes
SMPWE Male Pipe Weld Elbows SMPWE-8-8P
SMPWE Male Pipe Weld Elbows, Connects Fractional Tubes to Pipe
$27.94
$27.94
