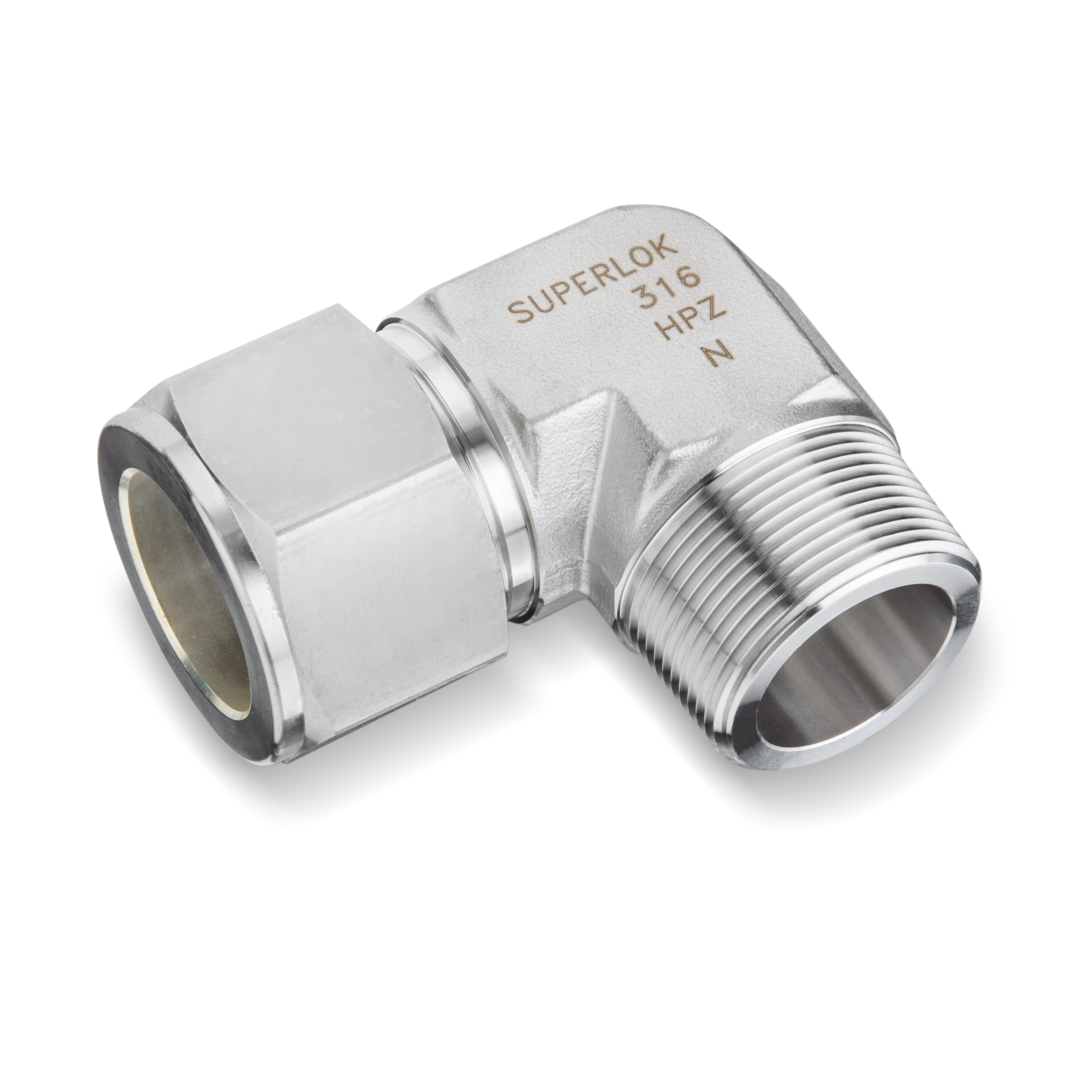

SME 90 Degree Male Elbows
Price range: $22.50 through $432.60
See individual part details below
Access our 90-degree male elbows, designed for efficient directional changes in fluid systems. These fittings offer leak-proof performance and are built for strength and reliability in high-pressure applications. Browse our catalog to find durable solutions tailored to your system requirements.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Description
| Angle | 90º |
|---|---|
| Superlok Part Type | Male Elbows |
Available Sizes
SME 90 Degree Male Elbows SME 10-8N

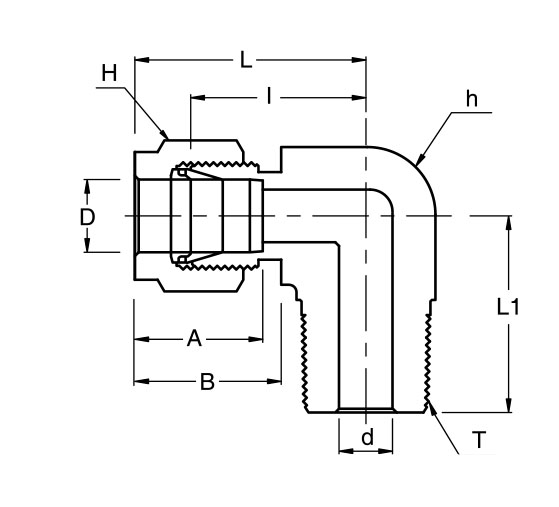

SME 5/8 in. Tube Outside Diameter D x 1/2 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
$24.83
$24.83
SME 90 Degree Male Elbows SME 12M-8R
SME 10 mm Tube Outside Diameter D x 1/2 in. Male British Standard Pipe Taper (MBSPT) Thread T 90 Degree Male Elbow
$22.50
$22.50
SME 90 Degree Male Elbows SME 12M-12R
SME 12 mm Tube Outside Diameter D x 3/4 in. Male British Standard Pipe Taper (MBSPT) Thread T 90 Degree Male Elbow
$32.10
$32.10
SME 90 Degree Male Elbows SME 14-12N
SME 7/8 in. Tube Outside Diameter D x 3/4 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
$24.80
$24.80
SME 90 Degree Male Elbows SME 16-12N
SME 1 in. Tube Outside Diameter D x 3/4 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
$53.46
$53.46
SME 90 Degree Male Elbows SME 16-16N
SME 1 in. Tube Outside Diameter D x 1 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
$53.60
$53.60
SME 90 Degree Male Elbows SME 18M-12R
SME 18 mm Tube Outside Diameter D x 3/4 in. Male British Standard Pipe Taper (MBSPT) Thread T 90 Degree Male Elbow
$33.43
$33.43
SME 90 Degree Male Elbows SME 20-20N
SME 1-1/4 in. Tube Outside Diameter D x 1-1/4 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
$136.70
$136.70
SME 90 Degree Male Elbows SME 24-24N
SME 1-1/2 in. Tube Outside Diameter D x 1-1/2 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
$194.67
$194.67
SME 90 Degree Male Elbows SME 32-32N
SME 2 in. Tube Outside Diameter D x 2 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
$432.60
$432.60
