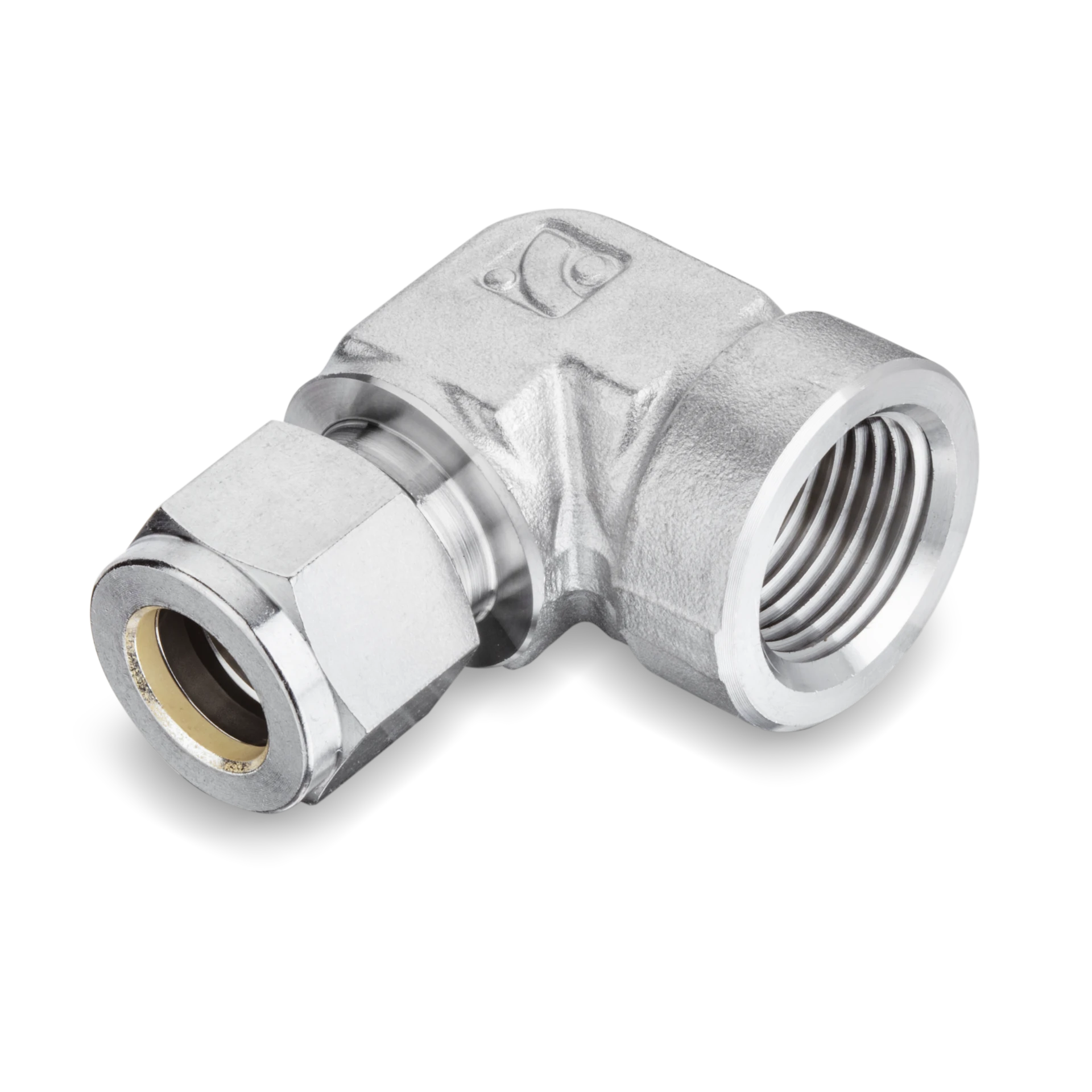

SFE 90 Degree Female Elbows
Price range: $14.89 through $87.04
See individual part details below
Access our 90-degree female elbows, designed for precise directional changes in fluid systems. These fittings ensure leak-free connections and durability in high-pressure environments. Engineered for industrial applications, they provide reliable performance and seamless integration with your tubing systems. Explore our catalog to find the perfect components for your needs.
Looking for Swagelok® alternatives? Enter a part number in our search to find compatible alternatives.
Description
| Angle | 90º |
|---|---|
| End Type | Male National Pipe Thread (NPT) |
| Superlok Part Type | Female Elbows |
Available Sizes
SFE 90 Degree Female Elbows SFE 6-4N
SFE 3/8 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow
$14.89
$14.89
SFE 90 Degree Female Elbows SFE 8-4N
SFE 1/2 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow
$19.12
$19.12
SFE 90 Degree Female Elbows SFE 8-6N
SFE 1/2 in. Tube Outside Diameter D x 3/8 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow
$20.16
$20.16
SFE 90 Degree Female Elbows SFE 8-8N
SFE 1/2 in. Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow
$27.17
$27.17
SFE 90 Degree Female Elbows SFE 10-8N
SFE 5/8 in. Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow
$41.53
$41.53
SFE 90 Degree Female Elbows SFE 12-8N
SFE 3/4 in. Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow
$34.43
$34.43
SFE 90 Degree Female Elbows SFE 12-12N
SFE 3/4 in. Tube Outside Diameter D x 3/4 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow
$50.26
$50.26
SFE 90 Degree Female Elbows SFE 12M-8N
SFE 12 mm Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow
$27.41
$27.41
SFE 90 Degree Female Elbows SFE 16-12N
SFE 1 in. Tube Outside Diameter D x 3/4 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow
$72.25
$72.25
SFE 90 Degree Female Elbows SFE 16-16N
SFE 1 in. Tube Outside Diameter D x 1 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow
$87.04
$87.04
